A155F2D0R0-125E Amp-Trap CS-3 Current Limiting General Purpose Medium Voltage General Purpose Fuse, 125 A, 15.5 kV AC, 50 kA Interrupt, Class: E, Ferrule Body
- MFR #:
- A155F2D0R0-125E
- UPC:
- 782001804695
- Item #:
- 12059
A155F2D0R0-125E Amp-Trap CS-3 Current Limiting General Purpose Medium Voltage General Purpose Fuse, 125 A, 15.5 kV AC, 50 kA Interrupt, Class: E, Ferrule Body
- MFR #:
- A155F2D0R0-125E
- UPC:
- 782001804695
- Item #:
- 12059
Product Details

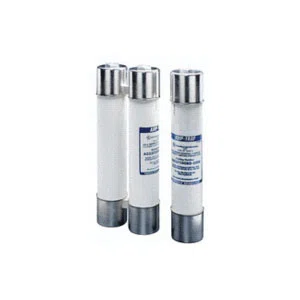

Mersen fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They have 2" (size C), 3" (size D) and 2x3" (size DD) inch diameter barrels with ferrules and are mounted in spring reinforced clips.
Manuals and Documentation
Features
- Amp-Trap® CS-3 series are UL listed for compatibility with UL listed equipment
- Ferrule mounting for standard clips and interchangeability with other brands of fuses
- Current limiting for superior equipment protection
- Non-venting for silent operation
- Metal embossed catalog number and manufacturing date for lasting identification
- Blown fuse indicator to give positive identification of open fuse
- 9F60/9F62: 0.125 lb tripped force 0.2 in
- Amp-Trap® 2 in barrel 1 lb tripped force - 0.19 in
- Amp-Trap® 3 in barrel 2 lb tripped force - 1/2 in
- 18 in clip centers
- Double barrel
- Silver-plated copper contact
Specifications
Identifiers
| Manufacturer Part Number |
A155F2D0R0-125E
|
|---|---|
| GTIN |
00782001804695
|
| UPC |
782001804695
|
|---|
General Information
| Manufacturer |
MERSEN
|
|---|---|
| Brand |
Mersen
|
| Country Of Origin |
MX
|
| Standards Approvals |
UL 9F62 File No. E143362
|
|---|---|
| Application |
For 12 to 15.5 kV transformers or distribution systems
|
Technical Information
| Amperage Rating |
125 A
|
|---|---|
| Body Size |
3 in Dia x 21-3/4 in L
|
| Body Type |
Ferrule
|
| Class |
E
|
| Indicating Non Indicating |
Indicating
|
| Interrupt Rating |
50 kA
|
| Material |
Fiber
|
| Mounting Type |
Clip
|
|---|---|
| Series |
CS-3
|
| Stripped Manufacturer Part Number |
A155F2D0R0125E
|
| Terminal Type |
Ferrule
|
| Type |
General Purpose Medium Voltage
|
| Voltage Rating |
15.5 kV AC
|
