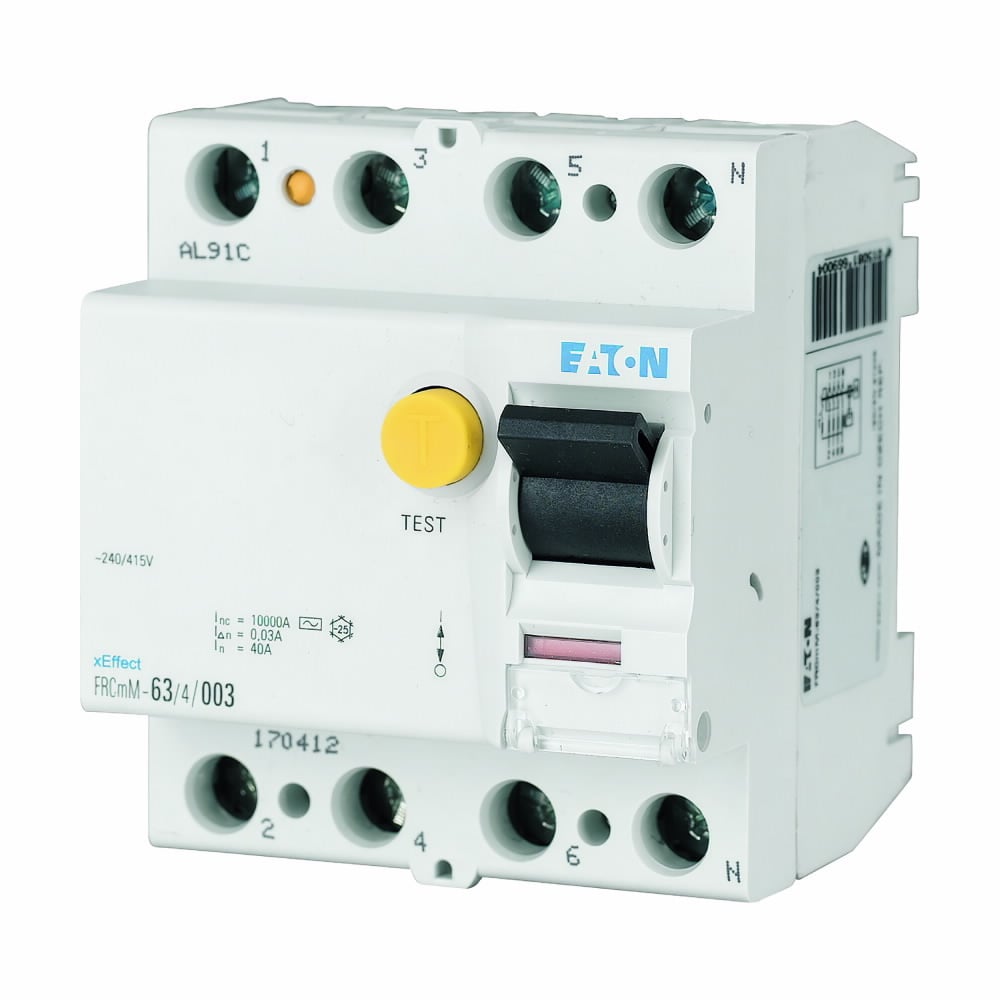

This Residual Current Circuit Breaker is part of Eaton's xEffect industrial range and fulfills the highest requirement of extended air and creeping distances according UL 1053 standard. This protection device completes Eaton's Residual Current Circuit Breaker product range and is particularly suitable for the protection of people and equipment in industrial applications.
- Catalog Number
- 167114
- Manufacturer
- Eaton
- Brand
- Eaton
- Sub Brand
- Moeller series
- Country of Origin
- Czech Republic
- Made in USA
- No
- Amperage Rating
- 40
- Application
- Other|Generation - Conventional Energy - Conventional Energy|Datacenters - IT Space: CI and Hyper Converged|Marine Vessels and Equipment - Marine Vessels and Equipment - Other|Generation - Renewable Energy - Alternative Energy|Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other|Residential Bldgs & Facilities - Residential Bldgs & Facilities - Other
- Frame
- 45 mm
- Frequency Rating
- 50 Hz / 60 Hz
- Number of Poles
- 2
- Special Features
- Current test marks as per inscription|Maximum operating temperature is 75 Degrees C: Starting at 40 Degrees C, the max. permissible continuous current decreases by 2.5% for every 1 Degrees C|The maximum operating current of back-up fuse must not exceed the residual current circuit breaker's rated operational current
- Standard
- UL 1053,IEC/EN 61008,IEC 61373,EN45545-2,IEC 61373,UL 1053,EN45545-2,IEC/EN 61008,RoHS conform,RoHS conform
- GTIN
- 04015081636167
- Item Type
- RCCB
- Voltage Rating
- 240/415V
