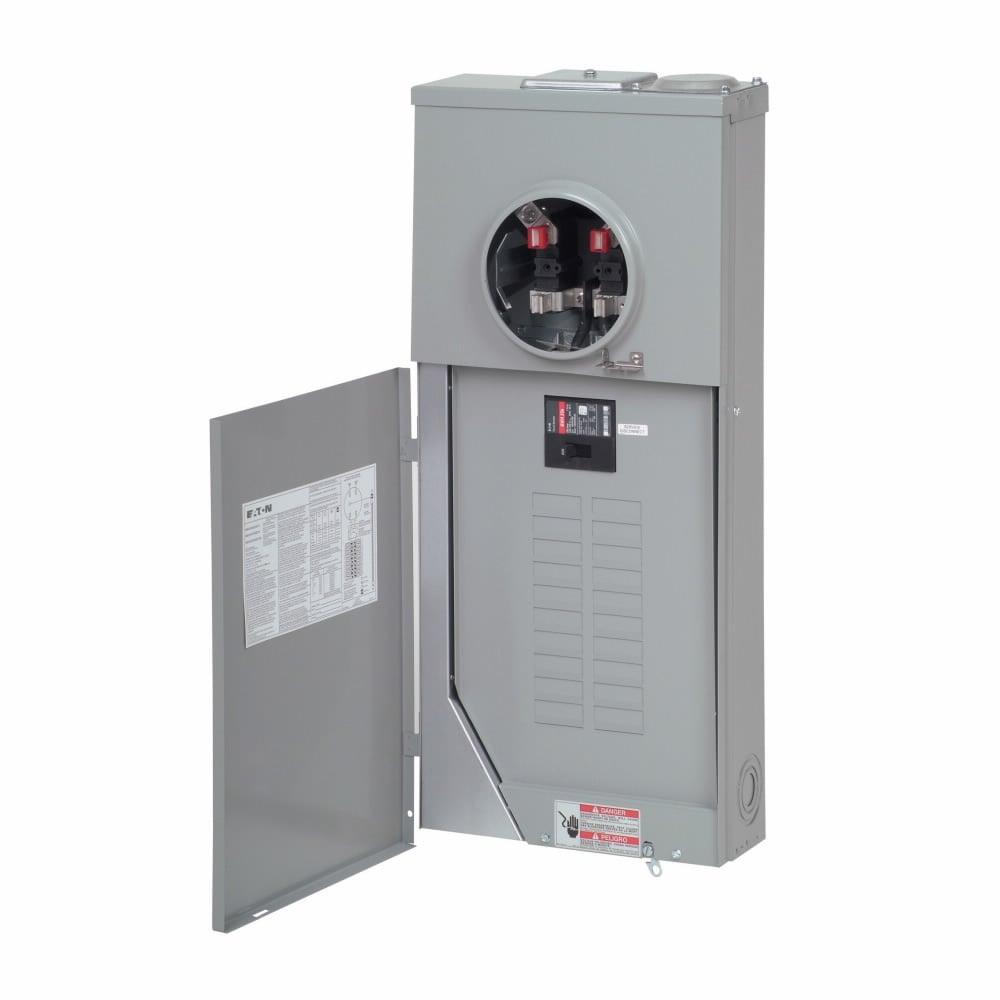

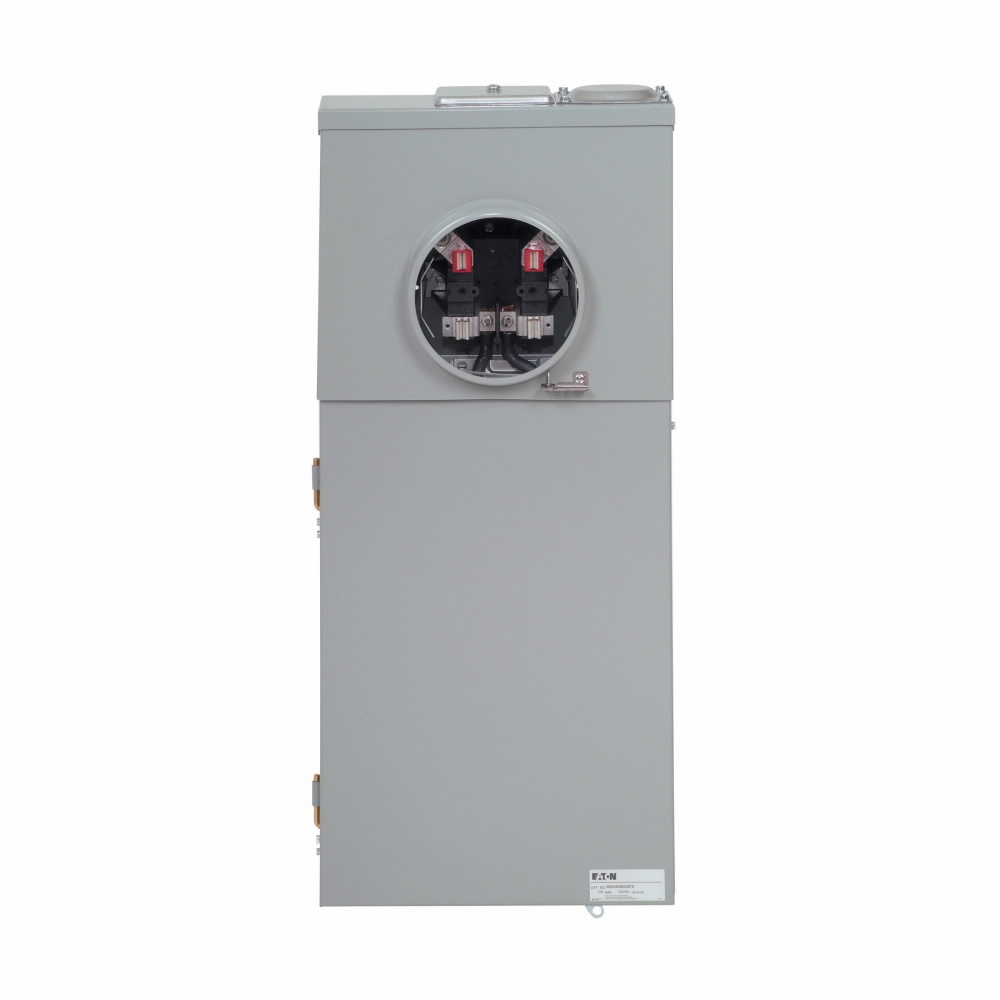

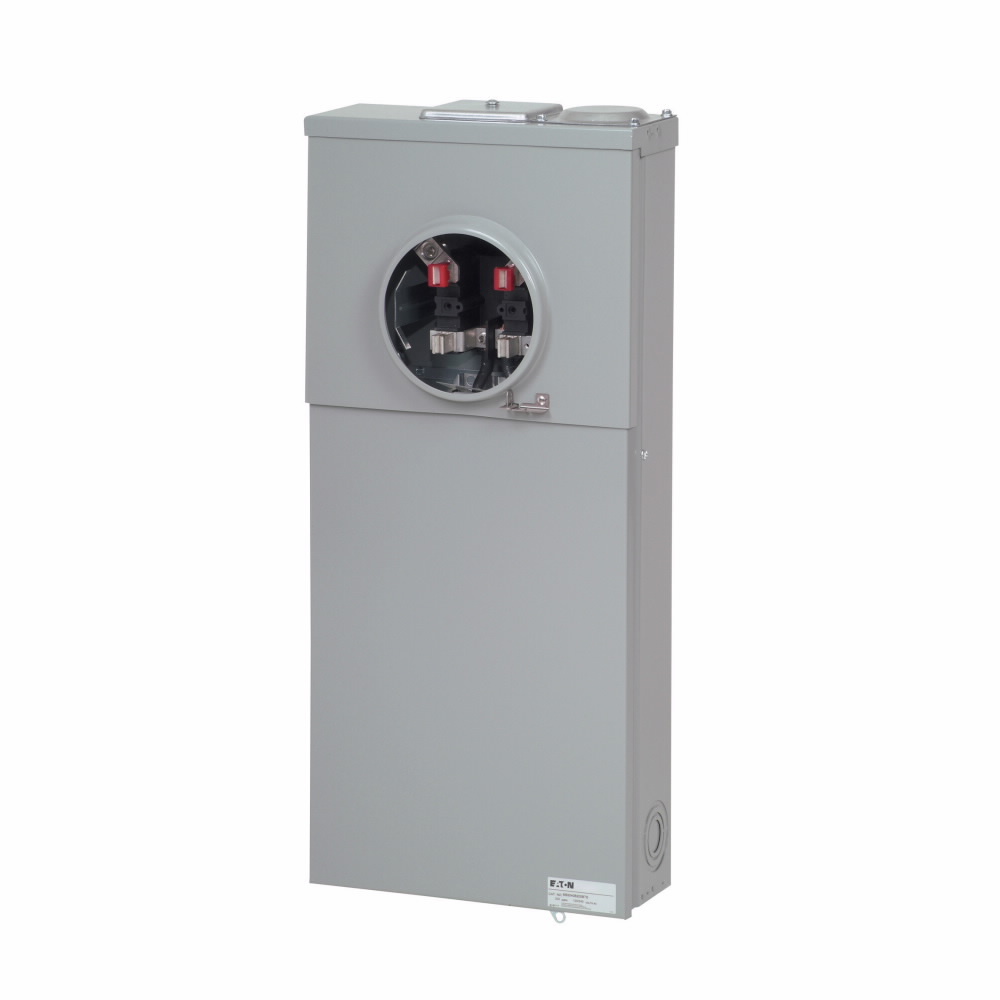

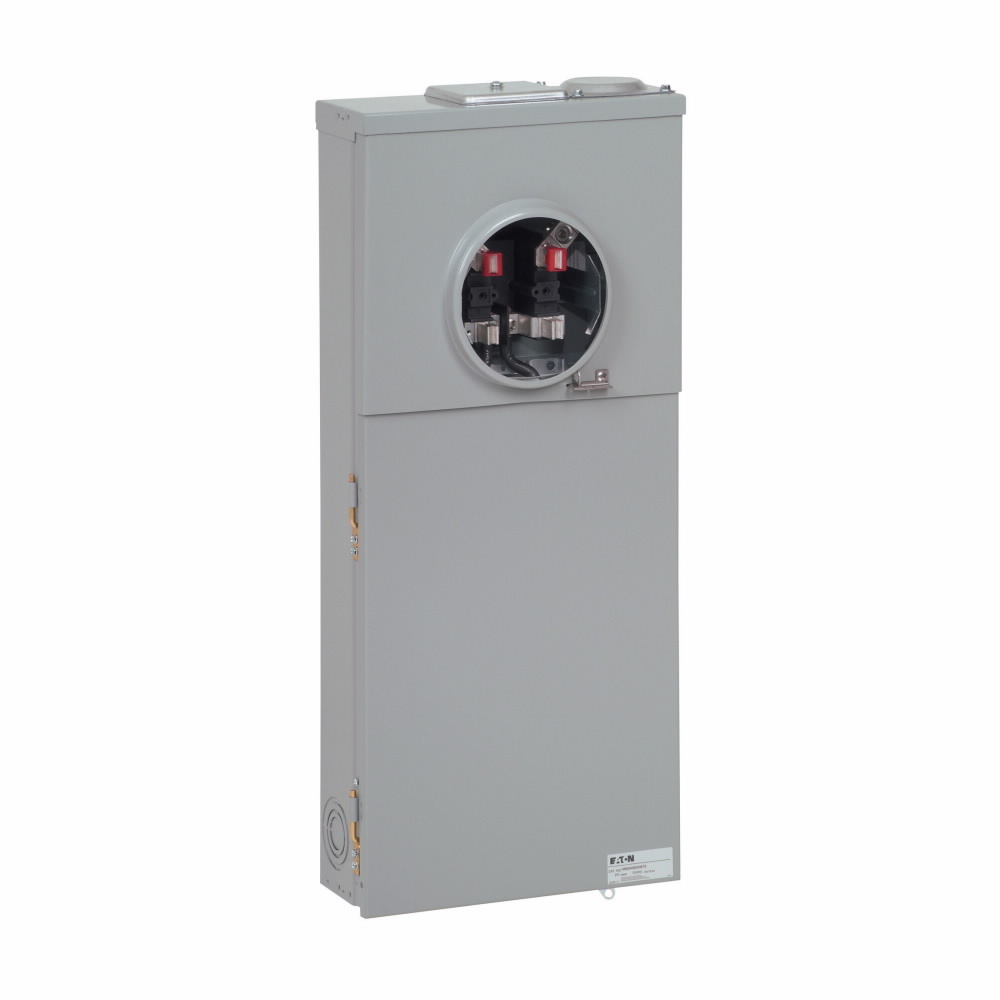

MB2040PV200BTS Type BR, Solar-Powered Center Meter Breaker, CSR Main Breaker, Construction, 200 Amp, 120/240V, 70 max PV input, 20 Spaces, 40 Circuits, 10 kAIC, Surface, NEMA 3R, Galvenized Steel Enclosure, Aluminum Bus, OH, UG
MFR: Eaton
MFR #: MB2040PV200BTS
UPC: 786685690285
Item #: 1166478
MB2040PV200BTS Type BR, Solar-Powered Center Meter Breaker, CSR Main Breaker, Construction, 200 Amp, 120/240V, 70 max PV input, 20 Spaces, 40 Circuits, 10 kAIC, Surface, NEMA 3R, Galvenized Steel Enclosure, Aluminum Bus, OH, UG
MFR #: MB2040PV200BTS
UPC: 786685690285
Item #: 1166478
Availability
Location | Available Qty |
---|---|
Available | Available to Order |
$3778.67
each
Eaton's Solar Power Centers feature industry-exclusive, factory-installed permanent markings, which help to ensure National Electrical Code (NEC) compliance and provide additional flexibility in PV sizing. The wide variety of configurations includes loadcenters and meters breakers, and becomes an all-in-one for both utility power and solar photovoltaic (PV) power. This all makes Eatons Solar Power Centers not just the most complete line of Balance of System products, but also makes possible quick and easy identification of product ratings and the location of the parallel energy source disconnect. A copper bussing rated up to 225A maximizes solar source up to 70A for standard units.
Manuals and Documentation
- Catalog Number
- MB2040PV200BTS
- Manufacturer
- Eaton
- Brand
- Eaton
- Country of Origin
- United States
- Made in USA
- Yes
- Amperage Rating
- 200
- Application
- Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other
- Bypass Type
- Review
- Phase
- 1
- Special Features
- Over/under construction
- Standard
- UL Listed
- UPC
- 786685690285
- GTIN
- 00786685690285
- Item Type
- Type BR solar power center meter breaker
- Voltage Rating
- 120/240 V
