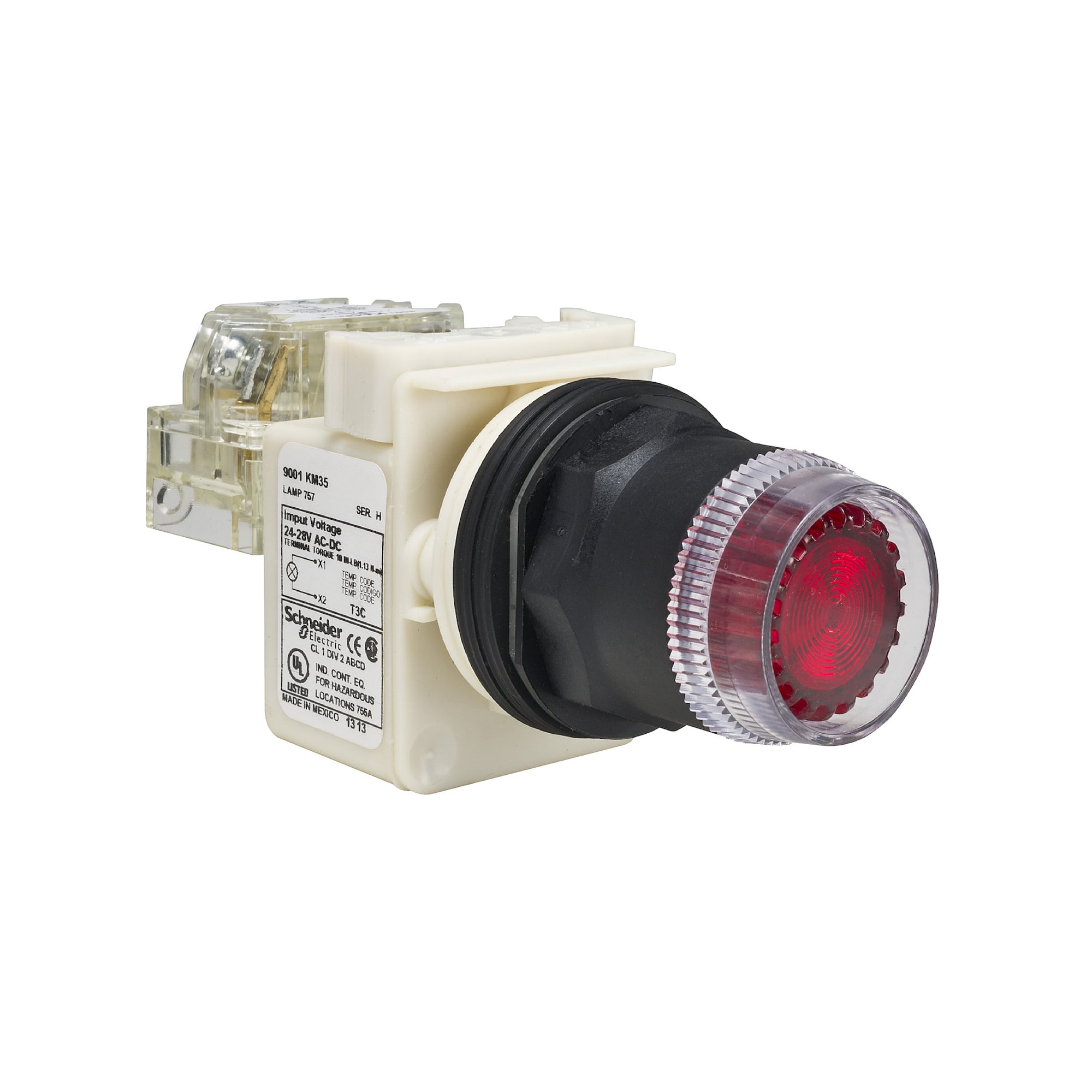

9001SK1L35RH13 Harmony Type SK Corrosion-Resistant Direct Dusttight/Oiltight/Watertight Heavy Duty Unmarked Illuminated Pushbutton With Plastic Full Guard and Contact Block, 30 mm, 1CO Contact, Slow Break Contact, Red
- MFR:
- Schneider Electric
- MFR #:
- 9001SK1L35RH13
- UPC:
- 785901040460
- Item #:
- 1133411
9001SK1L35RH13 Harmony Type SK Corrosion-Resistant Direct Dusttight/Oiltight/Watertight Heavy Duty Unmarked Illuminated Pushbutton With Plastic Full Guard and Contact Block, 30 mm, 1CO Contact, Slow Break Contact, Red
- MFR #:
- 9001SK1L35RH13
- UPC:
- 785901040460
- Item #:
- 1133411
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This Harmony 9001SK, modular illuminated flush red push button is supplied with a full guard. It has a double insulated plastic bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Manuals and Documentation
| Catalog Number | 9001SK1L35RH13 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | Standard |
| Actuator | spring return;Red flush;Flush;Spring return |
| Connection | Screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1 |
| Contact Configuration | 1 C/O |
| Material | Plastic |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=491909&lang=en-us |
| UPC | 785901040460 |
| GTIN | 00785901040460 |
| Item Type | Illuminated push-button |
| Voltage Rating | 24...28 V;24...28 V AC/DC |
