Panduit® Panduit

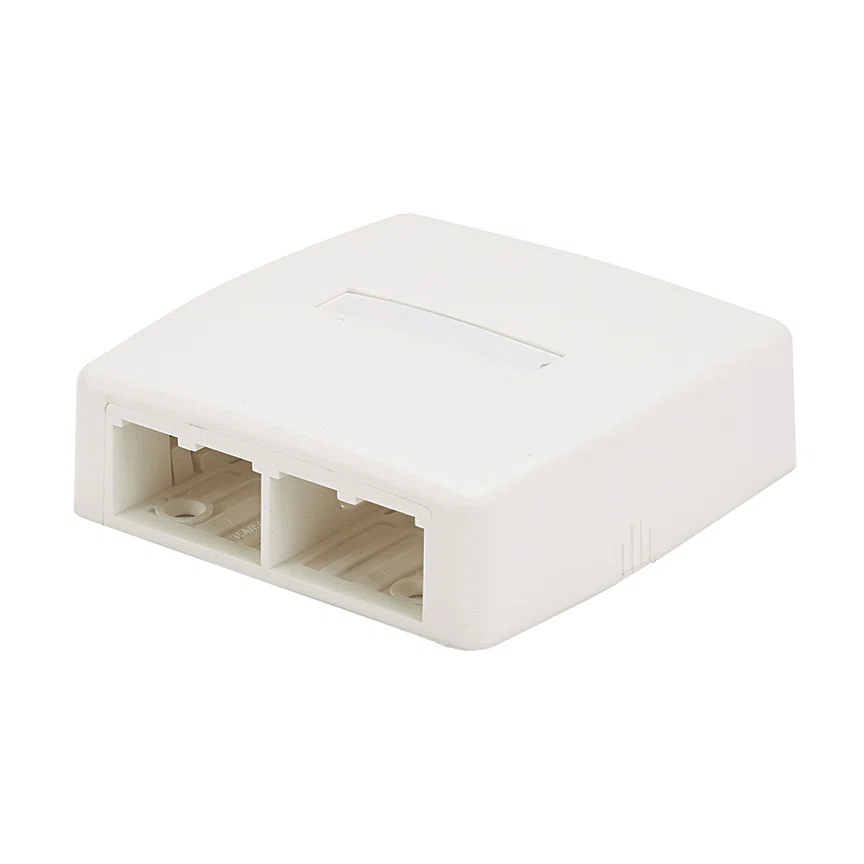

CBXQ4WH-A Mini-Com PanNet 4-Port Surface Mount Box, Mini-Com, Surface Mount, ABS

MFR #:
CBXQ4WH-A
UPC:
613056169487
Item #:
1100457
$14.10 each
Product Details

Surface mount boxes shall have a low profile design and be available in a variety of port densities. Boxes shall accept most Mini-Com® modules for fiber, copper and audio/video applications. The boxes shall mount with screws, adhesive or optional magnets. The box covers include breakouts for use with surface raceway. Cable tie slots shall be included to provide strain relief on incoming cables. Select boxes shall include a cover with a quick release feature.

Manuals and Documentation

Features

  • Mounts easily with screws, adhesive tape or optional magnet
  • Can be removed by hand, does not require tool
  • Smaller profile offers a less conspicuous look
  • Compatible with specific raceway, conceals cable entering the box
  • Boxes with label pocket provide a screw that secures the cover to the base
  • Achieved by installing jack modules with spring shuttered door
  • Pocket label type
  • Quick release cover can be removed by hand, does not require tool
  • Modular accepts most Mini-Com® modules, for easy moves, adds and changes
  • Low profile design smaller profile offers a less conspicuous look
  • Cover screw boxes with label pocket provide a screw that secures the cover to the base

Specifications

Identifiers

Identifiers
Manufacturer Part Number
CBXQ4WH-A
GTIN
00613056169487
Identifiers
UPC
613056169487
EAN
0613056169487

General Information

General Information
Manufacturer
Panduit
Brand
Panduit®
Country Of Origin
CN
General Information
Standards Approvals
UL 1863; UL 2043; RoHS Compliant | ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 1863 | UL 2043 | CSA Certified | TIA/EIA-606-A
Application
Fiber, Copper and Audio/Video Application

Dimensions

Dimensions
Height
1.181 in
Length
3.7 in
Dimensions
Width
3.754 in

Technical Information

Technical Information
Color
White
Material
ABS
Module Position
4
Module Type
Mini-Com®
Technical Information
Mounting Type
Surface
Suitable For Use With
LD3/LDPH3, LD5/LDPH5, LD10/LDPH10 Series Breakout Raceway System, Conceals Cable Entering the Box
Type
4-Port
