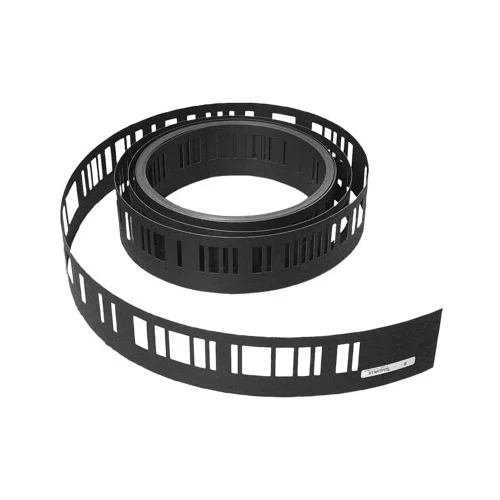

WCS2-CS55-L1 Code Rail, 0.1 to 327 m L, For Use With Position Encoding System WCS, Polyester Laminate
- MFR:
- Pepperl+Fuchs
- MFR #:
- WCS2-CS55-L1
- Item #:
- 1091726
WCS2-CS55-L1 Code Rail, 0.1 to 327 m L, For Use With Position Encoding System WCS, Polyester Laminate
- MFR #:
- WCS2-CS55-L1
- Item #:
- 1091726
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$24.00
each
Pepperl+Fuchs® Code Rail, For Use With: Position Encoding System WCS, 0.1 to 327 m L, Polyester Laminate, 55 mm W
Manuals and Documentation
Features
- Flexible installation by means of alu profile or mounting bracket system
- High chemical resistance
- Low weight
- >=500 mm bend radius
- -40 to 140 deg F operating and storage temperature
- 0.75 to 0.95 mm THK material
- <=230 N loading tension
- 2.8 x 10-5/K approximate thermal expansion coefficient
- +/-1 mm/m manufacturing tolerance
- 50 to 140 deg F installation temperature
| Manufacturer Part Number | WCS2-CS55-L1 |
| Brand | Pepperl+Fuchs® |
| Manufacturer | Pepperl+Fuchs |
| Dimensions | 55 mm W |
| Material | Polyester Laminate |
| Specifications | 0.1 to 327 m L |
| Suitable For Use With | Position Encoding System WCS |
| Manufacturer Item Status | Active |
| Country | USA |
