Product Details

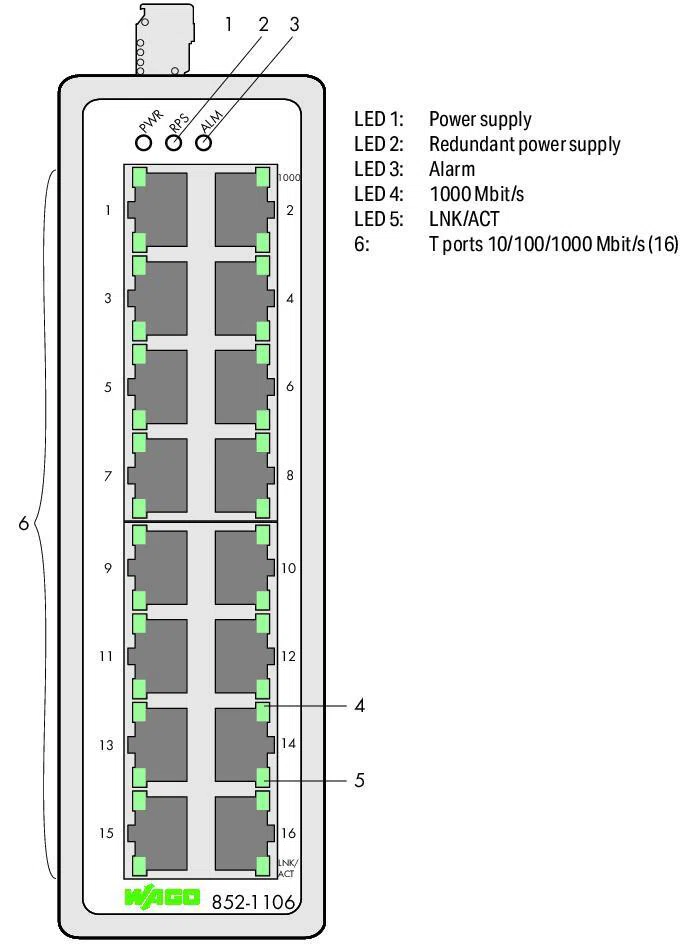

Industrial-Switch; 16 Ports 1000Base-T; Extended temperature range; black metallicThis unmanaged industrial ETHERNET switch (852-1106) has 16 Gigabit ETHERNET ports for easily setting up small- to medium-sized networks. Its slim design paired with a DIN-rail adapter simplifies installation in the control cabinet and provides high vibration and shock resistance. Additionally, automatic transmission rate detection (auto-negotiation) and automatic identification of the transmit and receive lines (Auto MDI-X) allow simple plug-and-play operation, saving time and money during commissioning. Status LEDs, a redundant power supply and an alarm contact (configurable via DIP switch) increase the switch's redundancy and diagnostic capabilities, providing higher operational uptime. Features: Redundant DC power supply Wide supply voltage range: 12 €¦ 60 VDC DIP switch to set alarm functions Full compliance with IEEE 802.3, 802.3u and 802.3ab standards Non-blocking, store-and-forward switching Auto-negotiation at all 10/100/1000BASE-T ports Auto-MDI/MDIX (crossover) at all 10/100/1000BASE-T ports Integrated address look-up table, supports up to 8000 absolute MAC addresses Overvoltage protection Prioritization of ETHERNET data packets (PROFINET protocol, EtherType=0x8892) per IEEE802.1p
Manuals and Documentation
Features

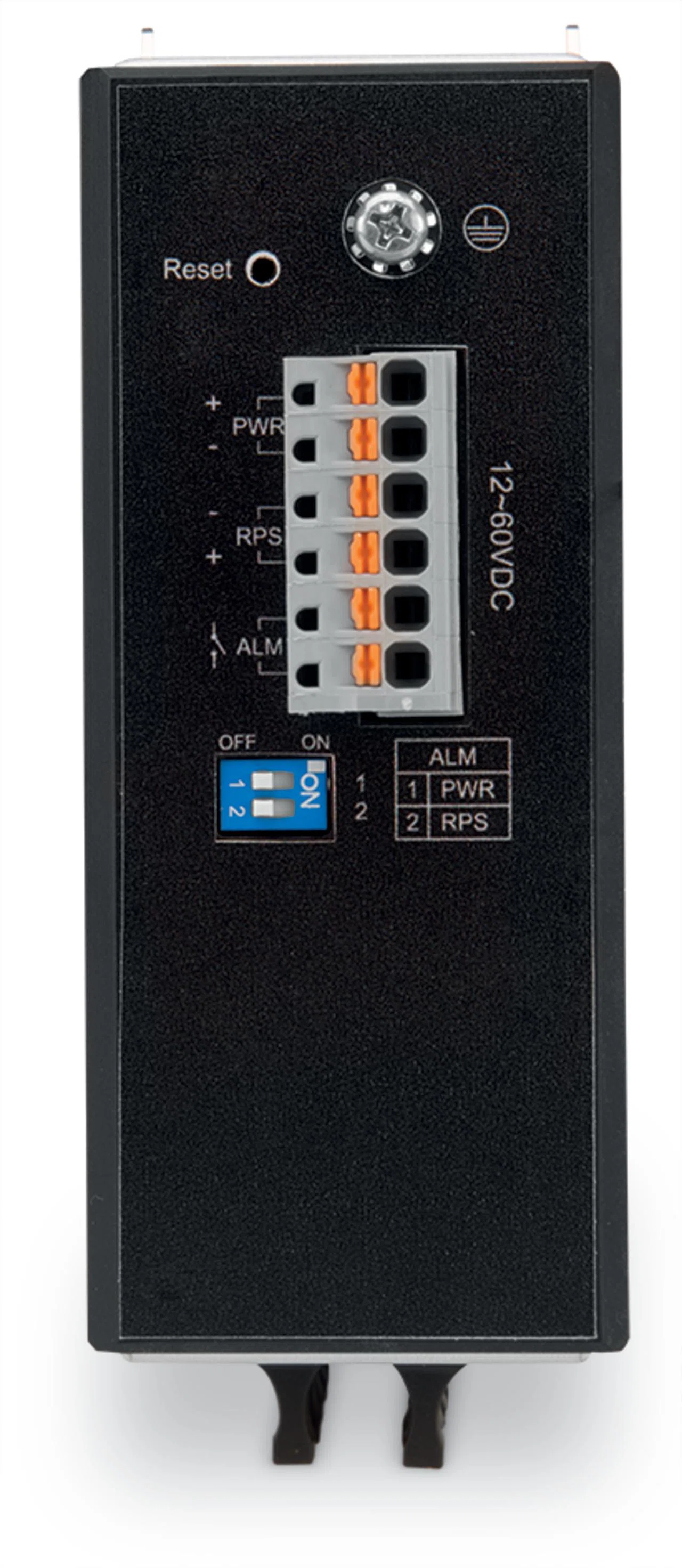

- Redundant DC power supply
- Wide supply voltage range - 12 60 VDC
- DIP switch to set alarm functions
- Non-blocking, store-and-forward switching
- Auto-MDI/MDIX (crossover) at all 10/100/1000BASE-T ports
- Integrated address look-up table, supports up to 8000 absolute MAC addresses
- Overvoltage protection
- Prioritization of ETHERNET data packets (PROFINET protocol, EtherType equal to 0x8892)
Specifications
Identifiers
| Manufacturer Part Number |
852-1106
|
|---|
| EAN |
4055143604659
|
|---|
General Information
| Manufacturer |
WAGO Corporation
|
|---|---|
| Brand |
WAGO
|
| Standards Approvals |
RoHS Compliant,No Exemption | IEEE802.1p | IEEE 802.3 | IP30 | IEC 60068-2-6 | IEC 60068-2-27 | EN 61000-6-2
|
|---|
Technical Information
| Interface |
1000Base-T
|
|---|---|
| Mounting Type |
DIN Rail
|
| Network Type |
Ethernet
|
| Number Of Ports |
16
|
|---|---|
| Series |
852
|
