Product Details

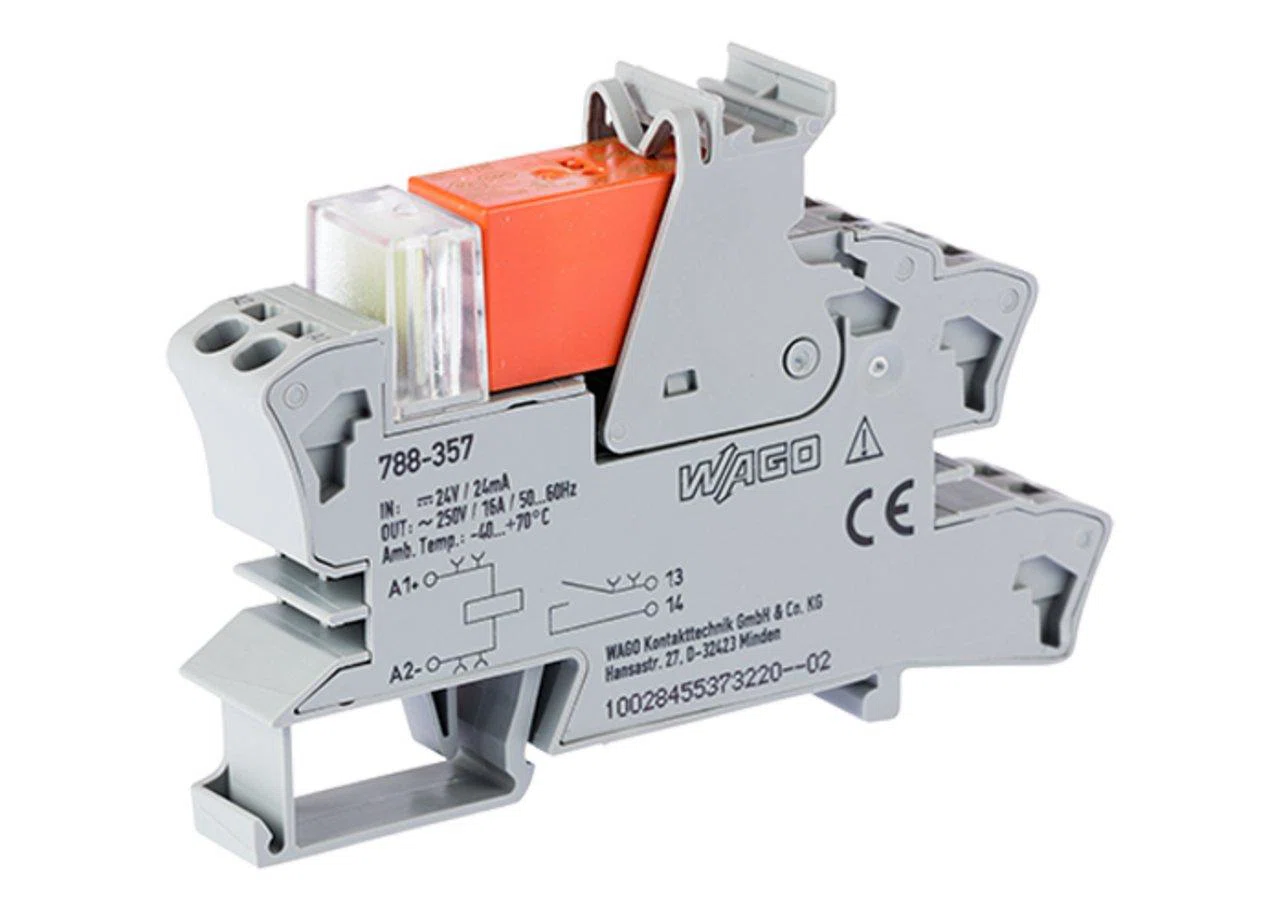

WAGO, 788-357, Relay Module, 24 V DC, 16 A, Red LED Indicator, -25 to 50 deg C, Push-In Connection, IP20 Enclosure, 35 mm DIN Rail Mounting, 3.386 in H x 0.591 in W x 2.126 in D Dimensions
Specifications
Identifiers
| Manufacturer Part Number |
788-357
|
|---|
| EAN |
4045454988586
|
|---|
General Information
| Manufacturer |
WAGO Corporation
|
|---|---|
| Brand |
WAGO
|
| Standards Approvals |
EN 61010-2-201 | EN 61810-1 | EN 61373 | RoHS Compliant | IP20
|
|---|
Dimensions
| Dimensions |
3.386 in H x 0.591 in W x 2.126 in D
|
|---|
Technical Information
| Amperage Rating |
16 A
|
|---|---|
| Connection Type |
Push-In
|
| Enclosure Type |
IP20
|
| Indicator |
Red LED
|
| Mounting Type |
35 mm DIN Rail
|
|---|---|
| Temperature Rating |
-25 to 50 deg C
|
| Voltage Rating |
24 V DC
|
