Product Details

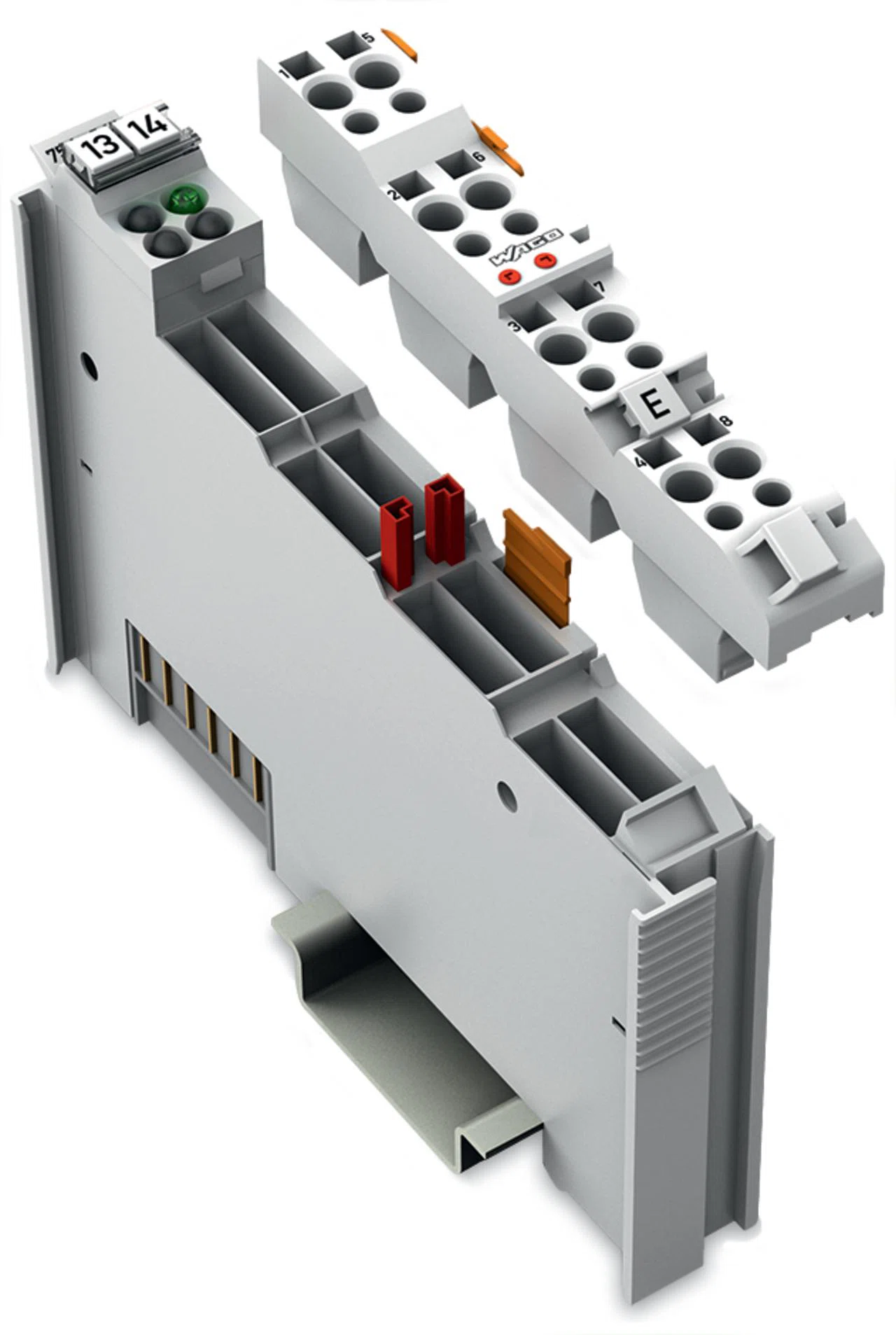

Power Supply; 0 €¦ 230 V AC/DC This supply module provides the I/O modules with the corresponding supply potential. The maximum current provided by the supply module is 10 A. When configuring the system, the total current must not be exceeded. Should higher currents be necessary, an intermediate supply module must be added to the assembly.
Manuals and Documentation
Specifications
Identifiers
| Manufacturer Part Number |
753-612
|
|---|
| EAN |
4045454394615
|
|---|
General Information
| Manufacturer |
WAGO Corporation
|
|---|---|
| Brand |
WAGO
|
| Standards Approvals |
RoHS Compliant,No Exemption | IP20 | IEC 60068-2-6 | IEC 60068-2-27 | EN 61000-6-2 | IEC 60068-2-42 | IEC 60068-2-43 | IEC 61131-2
|
|---|---|
| Application |
For marine applications
|
Dimensions
| Dimensions |
3.937 in H x 0.472 in W x 2.748 in D
|
|---|
Technical Information
| Input Voltage |
230 V AC
|
|---|---|
| Series |
753
|
| Specifications |
0 to 40 deg C Operating Temperature, 5 to 95% Relative Humidity
|
|---|
