WAGO WAGO Corporation

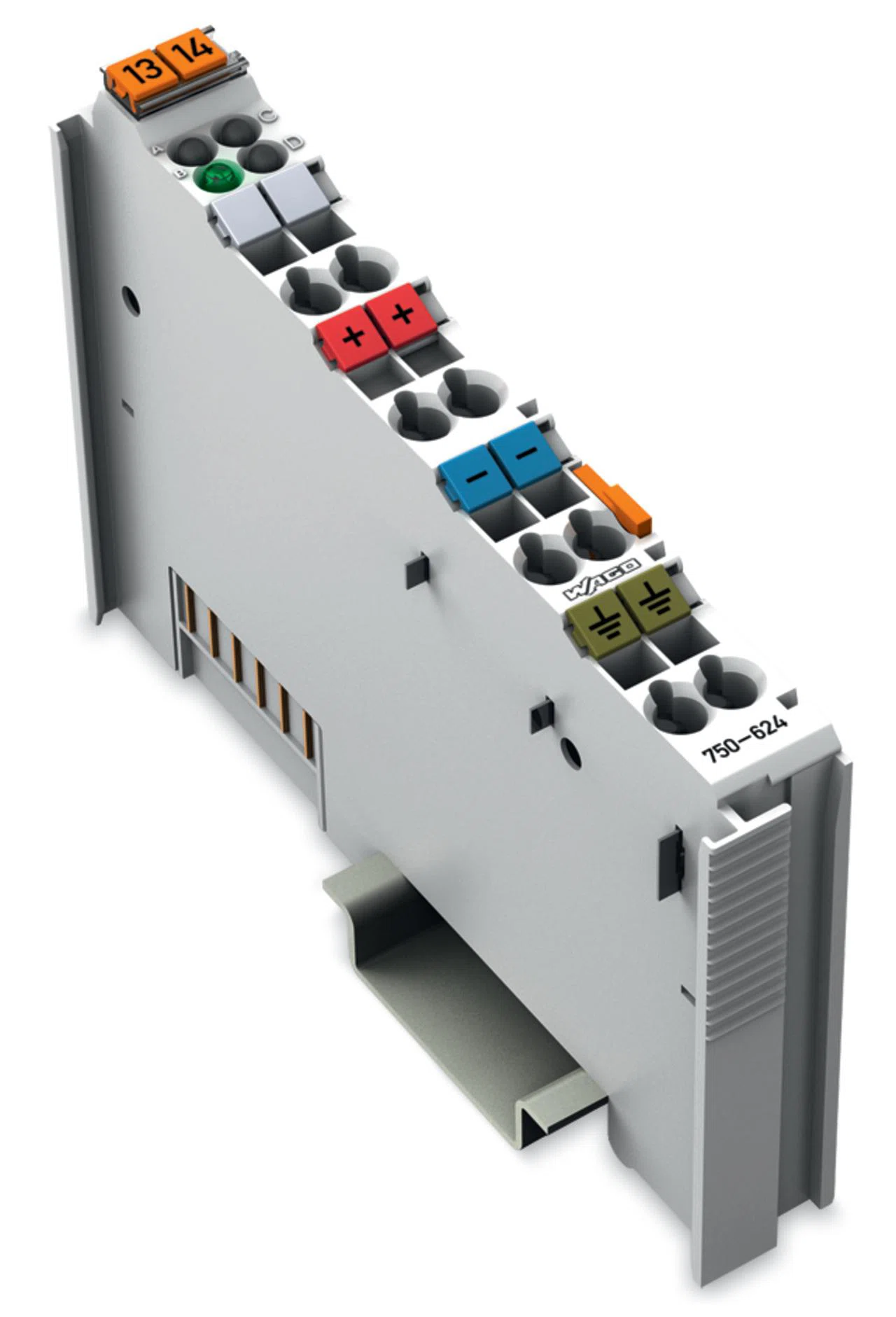

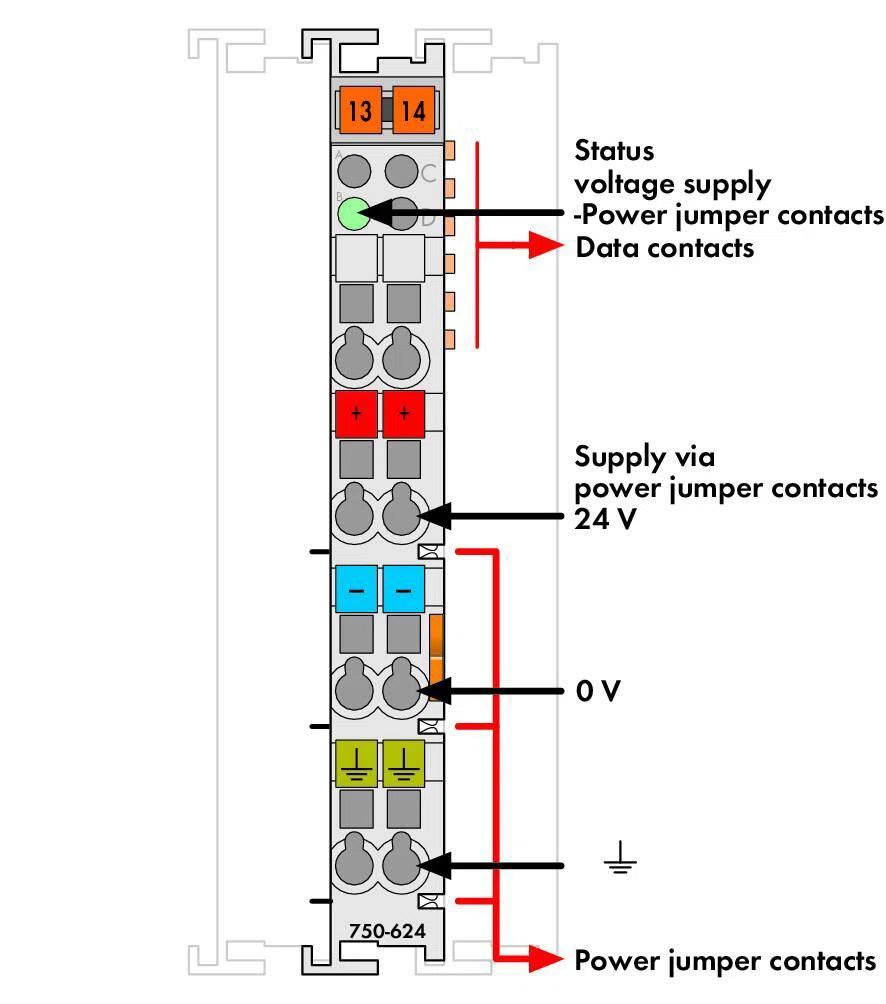

750-624 750, 24 V DC Input

MFR #:
750-624
Item #:
1081093
$126.38 each
Product Details

Filter module for field-side power supply (surge); 24 VDC The WAGO I/O System 750 can also be used in marine applications and onshore/offshore installations (e.g., platforms, loading facilities). This is possible via certification under the standards of leading agencies such as Germanischer Lloyd and Lloyd's Register. This filter module ensures proper (certified) system operation. The module protects against high-energy disturbances on DC supply lines due to switching overvoltages caused by inductive loads. It contains a transient protection for field supply.

Manuals and Documentation

Specifications

Identifiers

Identifiers
Manufacturer Part Number
750-624
Identifiers
EAN
4050821456346

General Information

General Information
Manufacturer
WAGO Corporation
Brand
WAGO
General Information
Standards Approvals
RoHS Compliant,With Exemption | IP20 | IEC 60068-2-6 | IEC 60068-2-27 | EN 61000-6-2 | IEC 60068-2-42 | IEC 60068-2-43 | IEC 61131-2
Application
For marine applications

Dimensions

Dimensions
Dimensions
3.937 in H x 0.472 in W x 2.748 in D

Technical Information

Technical Information
Color
Light Gray
Input Voltage
24 V DC
Technical Information
Series
750
