Product Details

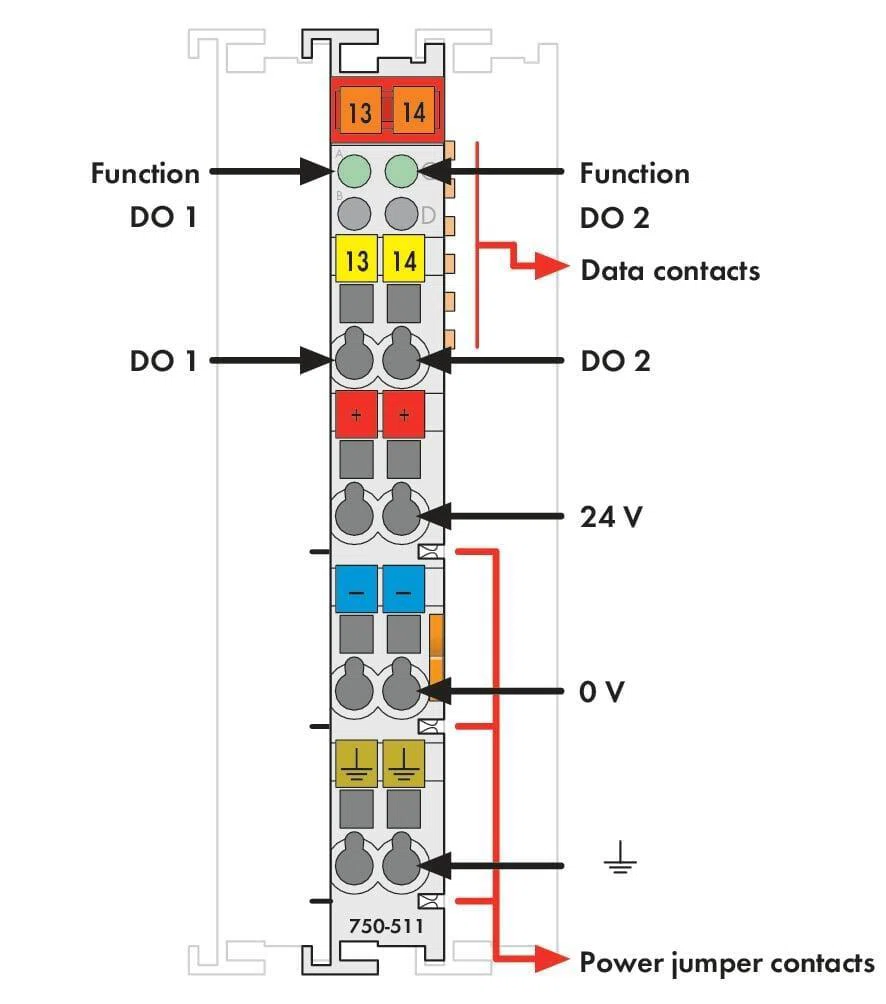

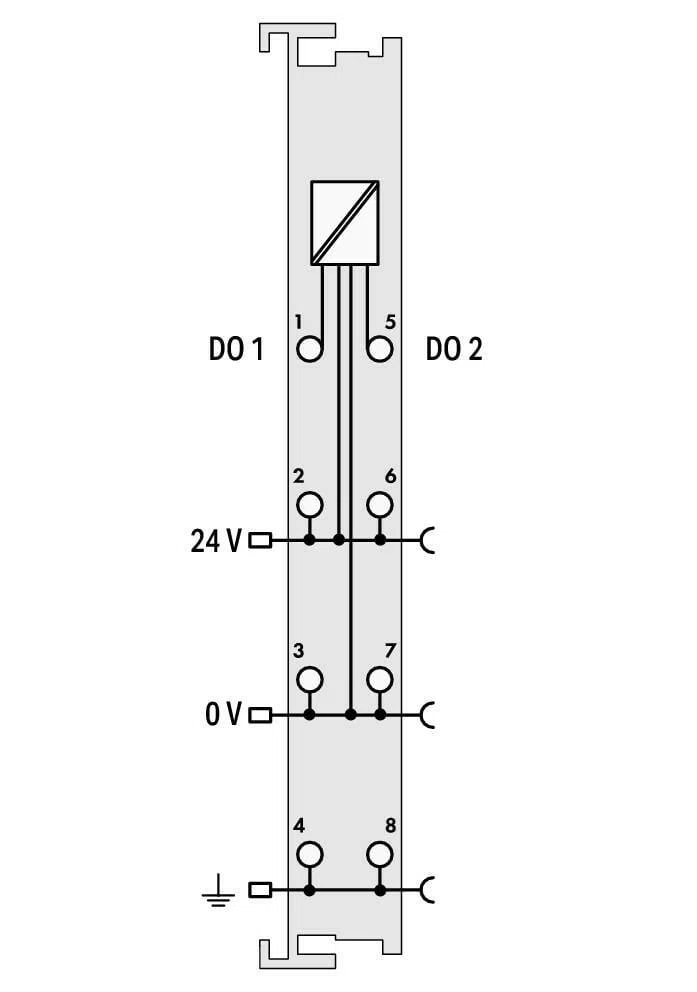

2 pulse width outputs; 24 VDC; 0.1 A; 2 kHz; Frequency Counter This output module modulates a 16-bit information in the frequency. The field side is electrically isolated from the bus system. The frequency is given by a 10-bit value with a resolution of 2 Hz/digit. The pulse/break ratio is factory set to 50%. The module connects a load with both pulse (DO 1) and directional (DO 2) signal. The outputs are short-circuit-protected.
Specifications
Identifiers
| Manufacturer Part Number |
750-511/000-001
|
|---|
| EAN |
4045454831592
|
|---|
General Information
| Manufacturer |
WAGO Corporation
|
|---|---|
| Brand |
WAGO
|
| Standards Approvals |
RoHS Compliant | CE | IP20
|
|---|
Dimensions
| Dimensions |
3.937 in H x 0.472 in W x 2.748 in D
|
|---|
Technical Information
| Color |
Light Gray
|
|---|---|
| Mounting Type |
35 mm DIN Rail
|
| Number Of Digits |
2
|
|---|---|
| Voltage Rating |
5 V DC
|
