Product Details

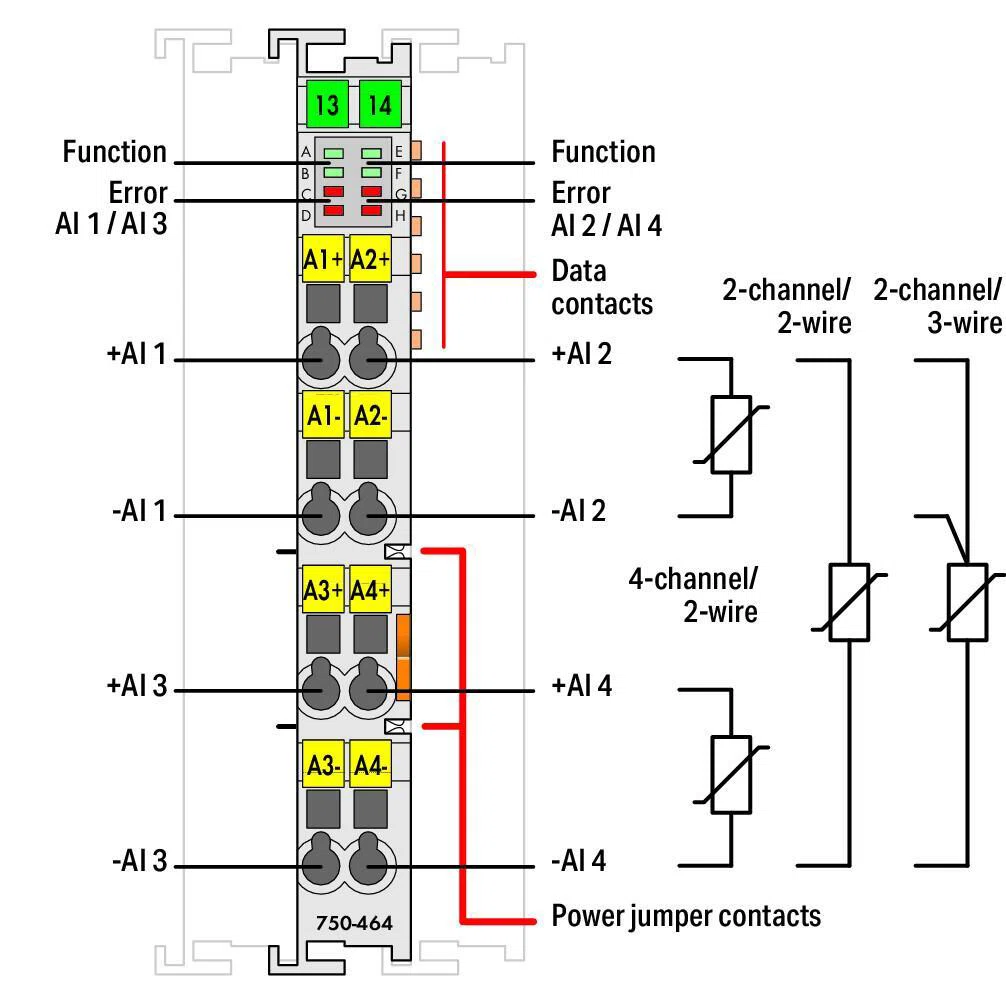

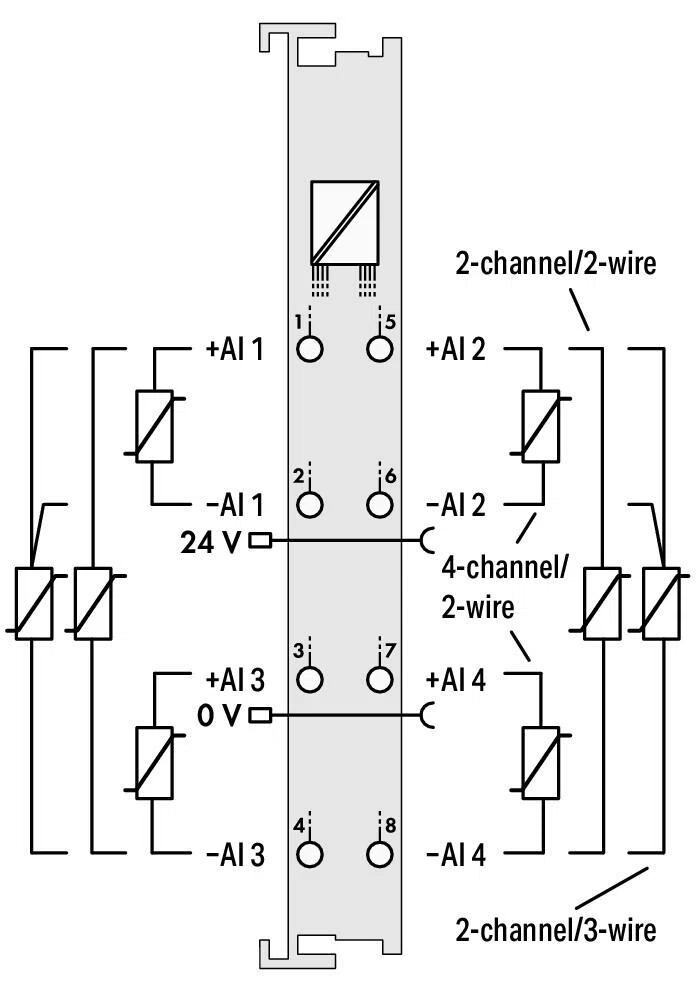

2/4-channel analog input; Resistance measurement; Adjustable This analog input module directly connects to Pt or Ni resistance sensors and potentiometers. It can be operated as a 2-channel (2- and 3-wire) or 4-channel (2-wire) module. The module automatically linearizes the entire temperature range. A sensor error (short circuit, line break or measurement range overflow) is indicated by a red LED. The module can be configured via WAGO-I/O-CHECK or GSD files. It features multiple setting options and high accuracy.
Manuals and Documentation
Specifications
Identifiers
| Manufacturer Part Number |
750-464
|
|---|
| EAN |
4045454976927
|
|---|
General Information
| Manufacturer |
WAGO Corporation
|
|---|---|
| Brand |
WAGO
|
| Standards Approvals |
RoHS Compliant,With Exemption | IP20 | IEC 60068-2-6 | IEC 60068-2-27 | EN 61000-6-2 | IEC 60068-2-42 | IEC 60068-2-43 | IEC 61131-2
|
|---|---|
| Application |
For marine applications
|
Technical Information
| Color |
Light Gray
|
|---|---|
| Number Of Inputs |
2, 4
|
| Series |
750
|
|---|---|
| Type |
Analog
|
