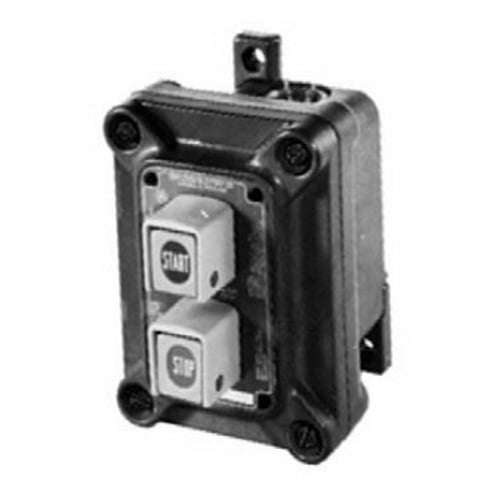

Pushbutton Control Station, 1-Gang 2-Circuit Dead End, Series: N1, 600 VAC, 10 A, 2NO-2NC, Momentary Contact Mode, Start/Stop Legend, NEMA 3R/4X/7C/7D/12, Surface Mount, Thermoplastic, Neutral, 8 in L x 7 in W x 7 in H
MFR: Appleton Electric
MFR #: N1D75-U2
UPC: 781381476133
Item #: 105857
Pushbutton Control Station, 1-Gang 2-Circuit Dead End, Series: N1, 600 VAC, 10 A, 2NO-2NC, Momentary Contact Mode, Start/Stop Legend, NEMA 3R/4X/7C/7D/12, Surface Mount, Thermoplastic, Neutral, 8 in L x 7 in W x 7 in H
MFR #: N1D75-U2
UPC: 781381476133
Item #: 105857
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1653.70
each
Intraground N1 Series 1-Gang Push Button Switch, Action: Momentary, Contact Configuration: 2 NO/2 NC, Contact Rating: 10 AMP At 600 VAC, Enclosure: NEMA 3R, 4X, 7CD, 12, Mounting: Surface Mount With 1/2 Or 3/4 IN Dead-End Hub, Material: 30 PCT Glass-Reinforced Thermoplastic Polyetherimide, Height: 5.63 IN, Width: 4.5 IN, Legend: Start/Stop, Standard: UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, For Remote Control Of Motors
Manuals and Documentation
- Catalog Number
- N1D75-U2
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Sub Brand
- Intraground
- Country of Origin
- Mexico
- Made in USA
- No
- Action
- Momentary
- Application
- For Remote Control Of Motors
- Enclosure
- NEMA 3R, 4X, 7CD, 12
- Mounting
- Surface
- Special Features
- Nonmetallic construction with metal imbedded grounding grid; No need to install special wires and parts for grounding; Special grounding wire furnished with each box provides safe grounding when cover is removed; Unique labyrinth-path construction assures flame-tight joint between body and cover; Silicone gasket, specially designed for the labyrinth-path joint, prevents entrance of moisture without interfering with the venting of cooled hazardous gases and vapors; High-strength thermoplastic polyetherimide, together with thick walls (5/16 IN) and sound structural design (rounded corners) provides superior resistance to impact and crushing; Excellent resistance to ultraviolet light and water; Excellent conduit connection strength; Excellent resistance to attack by fungi and mold; Explosionproof, with sealing fittings installed at each conduit entrance, the N1 series enclosures withstood a hydrostatic test of four times the maximum internal explosion pressure that could be developed from
- Standard
- UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D
- UPC
- 781381476133
- GTIN
- 00781381476133
- Item Type
- N1 Series 1-Gang Push Button Switch
