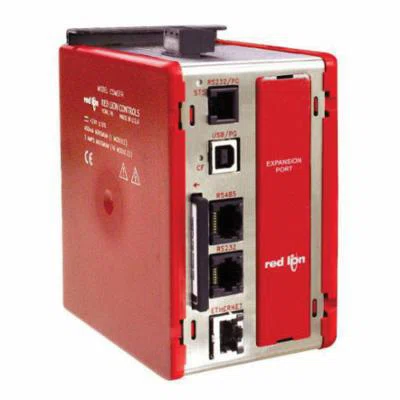

CSMSTRGT Data Logger/Web Server, 24 V DC, 3.5 A
- MFR:
- Red Lion Controls
- MFR #:
- CSMSTRGT
- Item #:
- 105471
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$3,064.35
each
redlion® Data Logger/Web Server, Series: CSMSTR, 24 V DC, 3.5 A, Screw Terminal, 0 to 50 deg C, Plastic, Burgundy, 134.7 mm H x 78.5 mm W x 105.4 mm D Dimensions
Features
- Provides enhanced features for data acquisition or multi-zone PID control applications
- Supports up to 16 modular controller series modules
- Stores module configuration information and automatically reprograms replaced modules
- Protocol conversion feature converts up to 15 protocols simultaneously
- Extensive built-in driver list allows easy data mapping to PLCs, PCs and SCADA systems
- (2) RS-232 serial ports, (1) RS-422/485 serial port, 10 Base-T/100 Base-TX Ethernet port
- Independent serial ports provide virtually unlimited integration methods
- CompactFlash® slot allows process data to be logged directly to CSV files
- Up To 640 x 480 virtual HMI offers built-in PC-based SCADA functionality
- Webserver provides worldwide access to data logs and virtual HMI
- Alarm notifications can be sent via email or text messages
| Manufacturer Part Number | CSMSTRGT |
| Brand | redlion® |
| Manufacturer | Red Lion Controls |
| Amperage Rating | 3.5 A |
| Color | Burgundy |
| Dimensions | 134.7 mm H x 78.5 mm W x 105.4 mm D |
| Material | Plastic |
| Series | CSMSTR |
| Temperature Rating | 0 to 50 deg C |
| Voltage Rating | 24 V DC |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | ABS 09-HS426719-B-4-PDA | CE Marked | RoHS Compliant | UL Listed |
| Application | For data acquisition or multi-zone PID control and hazardous locations |
| Terminal Type | Screw |
