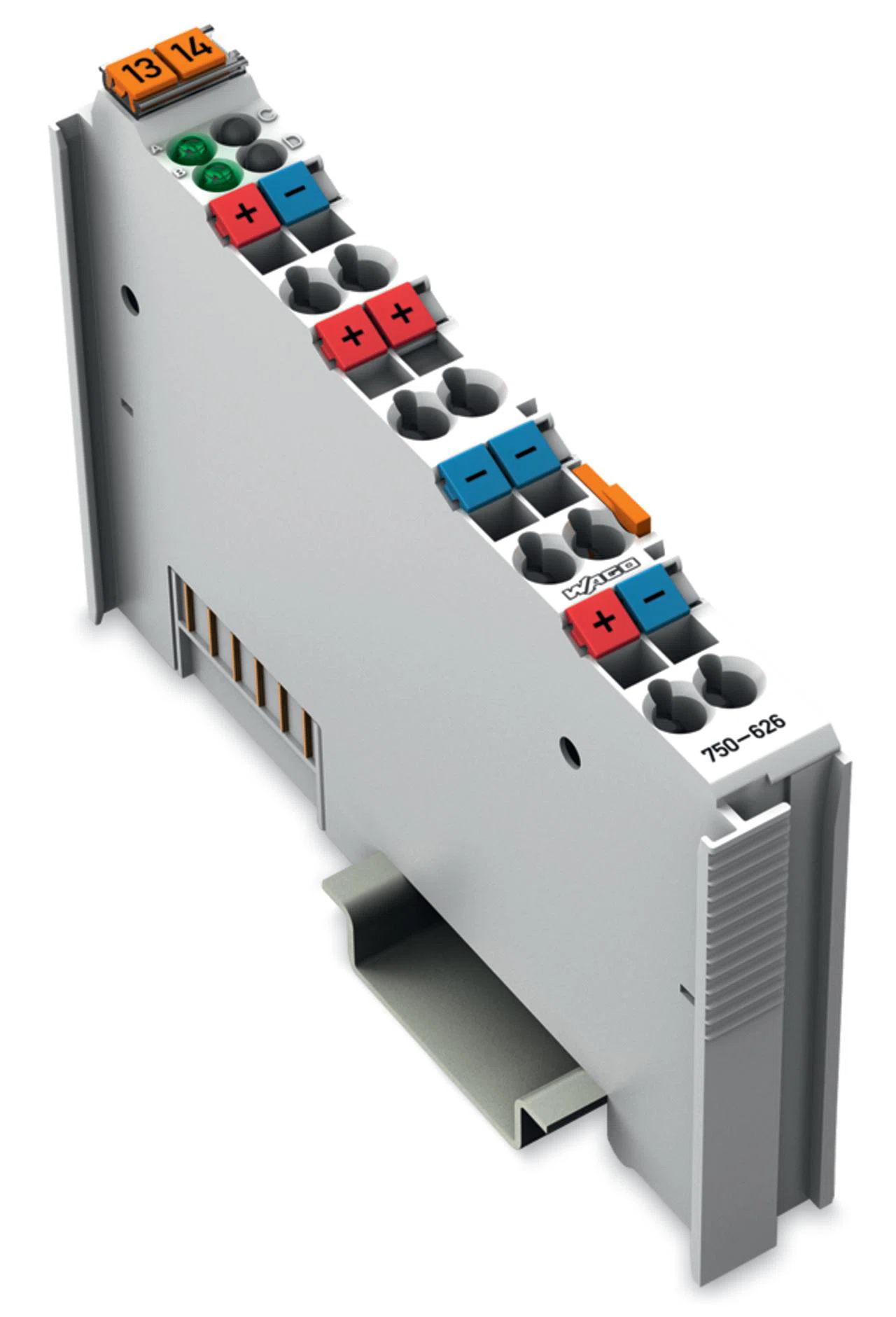

Supply Filter; 24 VDC The WAGO I/O System 750 can also be used in marine applications and onshore/offshore installations (e.g., platforms, loading facilities). This is possible via certification under the standards of leading agencies such as Germanischer Lloyd and Lloyd's Register. This filter module ensures proper (certified) system operation. The module filters the 24 V system power supply and is equipped with surge suppression. High-insulation versions are streamlined for use in systems with insulation monitoring.
Manuals and Documentation
| Manufacturer Part Number | 750-626 |
| Brand | WAGO |
| Manufacturer | WAGO Corporation |
| EAN | 4045454393977 |
| Color | Light Gray |
| Dimensions | 3.937 in H x 0.472 in W x 2.748 in D |
| Series | 750 |
| Alternative Part Number | 51180903 | 18643771 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | RoHS Compliant,With Exemption | IP20 | IEC 60068-2-6 | IEC 60068-2-27 | EN 61000-6-2 | IEC 60068-2-42 | IEC 60068-2-43 | IEC 61131-2 |
| Application | For use in systems with insulation monitoring |
| Input Voltage | 24 V DC |
