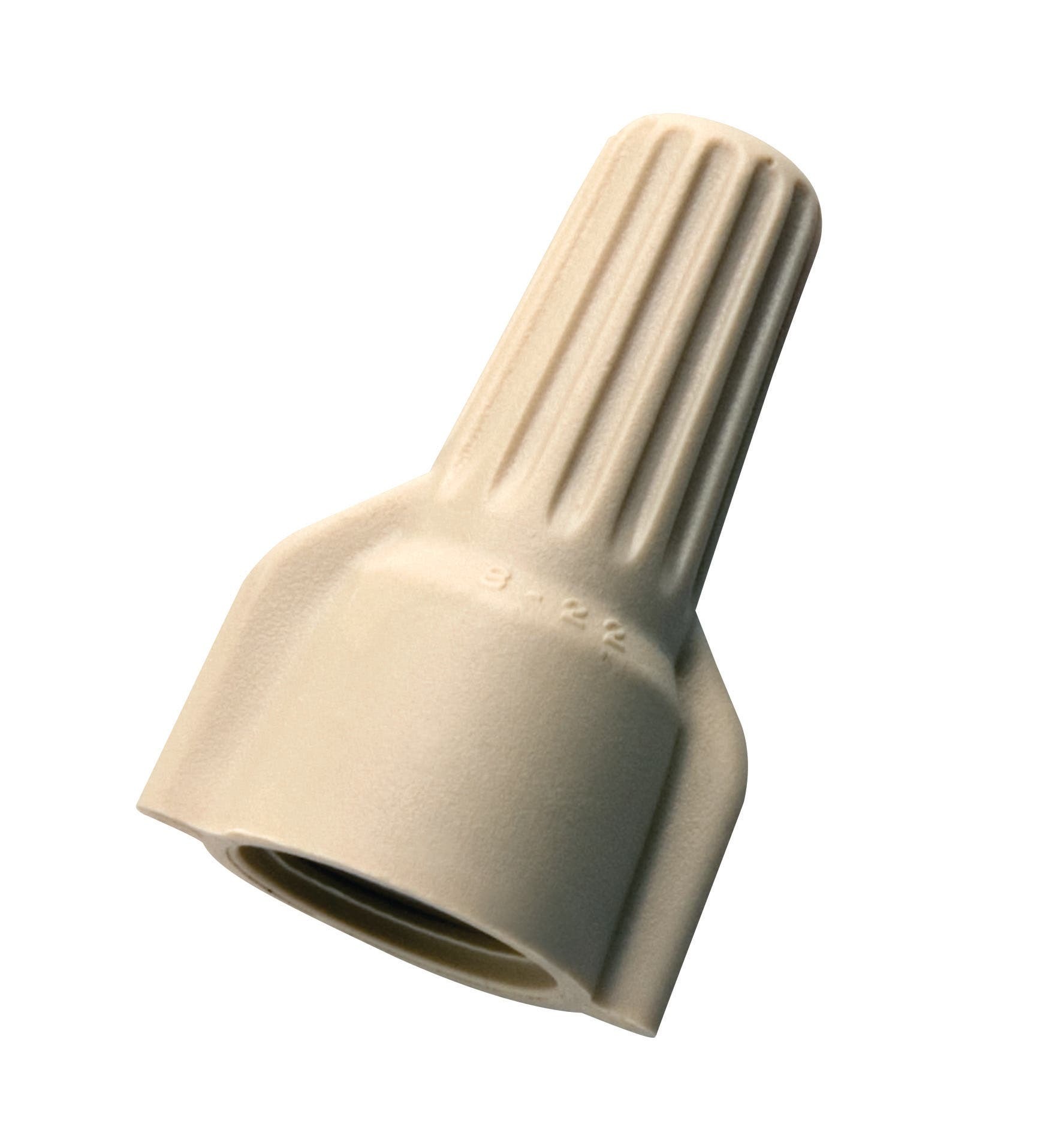

WT41-500JR WingTwist Wire Connector, Model WT41, Tan, Jar of 500
MFR: Ideal Industries
MFR #: WT41-500JR
UPC: 781789967707
Item #: 10093
WT41-500JR WingTwist Wire Connector, Model WT41, Tan, Jar of 500
MFR #: WT41-500JR
UPC: 781789967707
Item #: 10093
Availability
| Location | Available Qty |
|---|---|
| Available | 1000 |
$0.12
each
With a full line for virtually every wire size and combination, the WingTwist Wire Connector offers a great combination of performance and value.The contoured wing design of the WingTwist provides maximum torque for a variety of electrical applications while the copolymer shell and live-action spring expand for smooth, progressive tightening providing dependable connections.With a tough, flame-retardant shell that withstands environmental extremes, and a long, deep skirt to provide maximum dielectric protection to prevent flash-over and turned-back strands, the WingTwist Wire Connector brings comfort and performance at a price that is right.
Manuals and Documentation
- Catalog Number
- WT41-500JR
- Manufacturer
- Ideal Industries
- Brand
- Buchanan
- Country of Origin
- United States
- Made in USA
- Yes
- Application
- Insulating or Joining 1 or more conductors
- Color
- Tan
- Conductor Range
- 22 - 10 AWG, 2/20 AWG Min, 3/10 Solid AWG MAX
- Material
- Flame-retardant Polypropelene
- Number of Conductors
- 1 to 6
- Special Features
- Features: Five Color-Coded Models Cover Common Construction Wire Ranges; Green Model Designed For Ground Connections; Unique Contoured Wing Design Acts As Built-In Wrench Providing Maximum Torque With Minimum Effort; Fixed, Square-Wire Spring Threads Itself Creating Secure Pressure Grip; Deep, Wide-Throated Skirt Protects Against Flash-Over And Turned-Back Strands For Maximum Dielectric Protection; UL 486C Listed (WGR UL 467 Listed) And CSA C22.2 #188 Certified; 1,000V Maximum In Fixtures And Signs; Model Number: WT41
- Standard
- CSA C22.2 #188, UL 486C Listed, RoHS
- UPC
- 781789967707
- GTIN
- 00781789967707
- Environmental Conditions
- Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F)
- Voltage Rating
- 600
- Cross Reference Products
- 3M 051128-54451|3M 051128-54452|3M 051128-55695|3M 412|Gardner 10-1H1|Gardner 13-1H1|Gardner 16-1H1L|Gardner H1|Ideal 30-341|Ideal 30-441J
