Pan-Lug LCA1-38-E Comp. Lug, 1, Tin Plt Copper, Strt, One 3/8" Stud, PK20
- MFR:
- Panduit
- MFR #:
- LCA1-38-E
- UPC:
- 074983900213
- Item #:
- 100254
Pan-Lug LCA1-38-E Comp. Lug, 1, Tin Plt Copper, Strt, One 3/8" Stud, PK20
- MFR #:
- LCA1-38-E
- UPC:
- 074983900213
- Item #:
- 100254
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$10.108
each

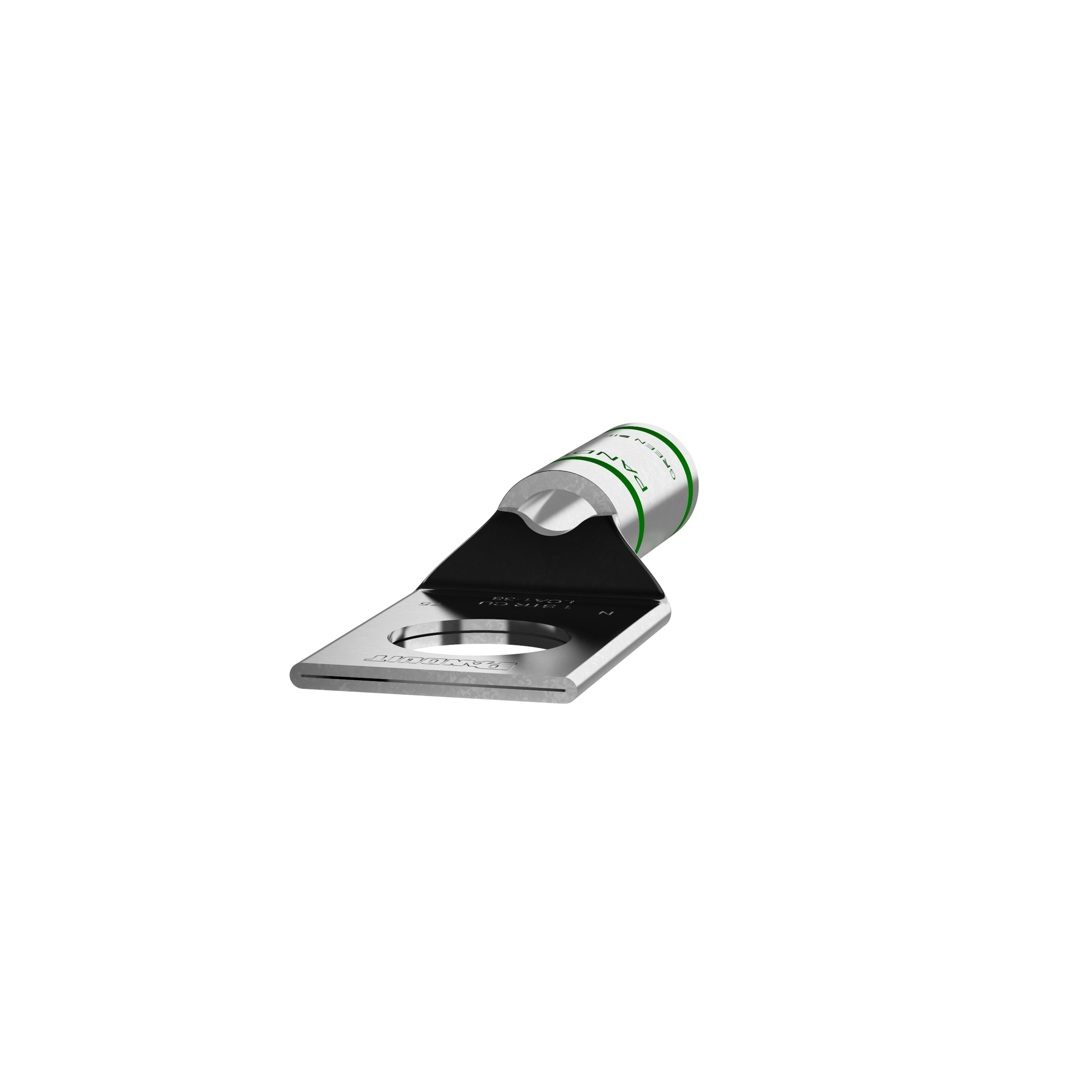

The LCA1-38-E Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
Manuals and Documentation
| Catalog Number | LCA1-38-E |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Green |
| Material | Copper |
| Number of Holes | 1 |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13 |
| UPC | 074983900213 |
| GTIN | 00074983900213 |
| Item Type | Compression Lug |
| Size | #1 AWG Code |
| Stud Size | 3/8 IN |
