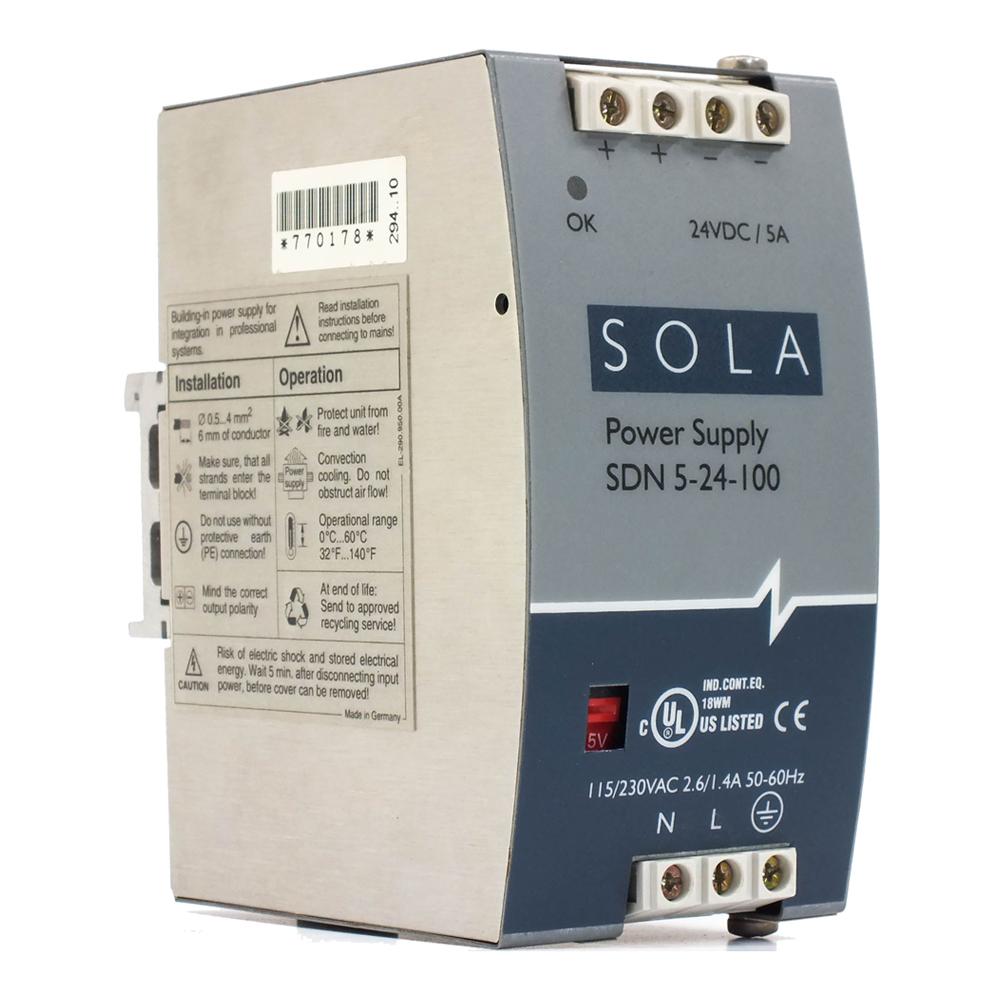

SDN-P Series DIN Rail Power Supply, Nominal Output Current: 5 A (120 W), Nominal Voltage Input: 115/230 Vac, Nominal Voltage Output: 24 Vdc, Frequency 47-63 Hz, Single Phase
MFR: SolaHD
MFR #: SDN5-24-100P
UPC: 783472153190
Item #: 87608
SDN-P Series DIN Rail Power Supply, Nominal Output Current: 5 A (120 W), Nominal Voltage Input: 115/230 Vac, Nominal Voltage Output: 24 Vdc, Frequency 47-63 Hz, Single Phase
MFR #: SDN5-24-100P
UPC: 783472153190
Item #: 87608
Availability
| Location | Available Qty |
|---|---|
| Available | 111 |
$885.64
each
Manuals and Documentation
- Catalog Number
- SDN5-24-100P
- Manufacturer
- SolaHD
- Brand
- SolaHD
- Country of Origin
- Taiwan, Province Of China
- Made in USA
- No
- Application
- Industrial Machine Control and Process, Conveying Equipment, Material Handling, Packaging Equipment
- Cable Size
- 16 - 10 AWG Solid
- Enclosure
- Class 1 Zone 2, IP20
- Frequency Rating
- 47 - 63
- Material
- Metal Housing
- Mounting
- Din Rail
- Phase
- 1
- Special Features
- Power Factor Correction (per EN61000-3-2), Auto Select 115/230 Vac, 50/60 Hz Input, DC OK Signal, Adjustable Voltage, Parallel Capability standard on all units, -10 DEG C to 60 DEG C operation without derating, Indefinite short circuit, overvoltage and overtemperature protection, Narrow width on rail for space critical applications, User-friendly front panel.
- Standard
- UL (CANADA AND US), UL 508, UL 60950, CUL, CSA-C22.2, CE
- UPC
- 783472153190
- GTIN
- 00783472153190
- Item Type
- SDN-P DIN Rail Series
- Length
- 4.55
- Width
- 1.97
- Height
- 4.88
- Environmental Conditions
- 90 RH Humidity Range
- Voltage Rating
- 115/230
- Wattage
- 8.6
