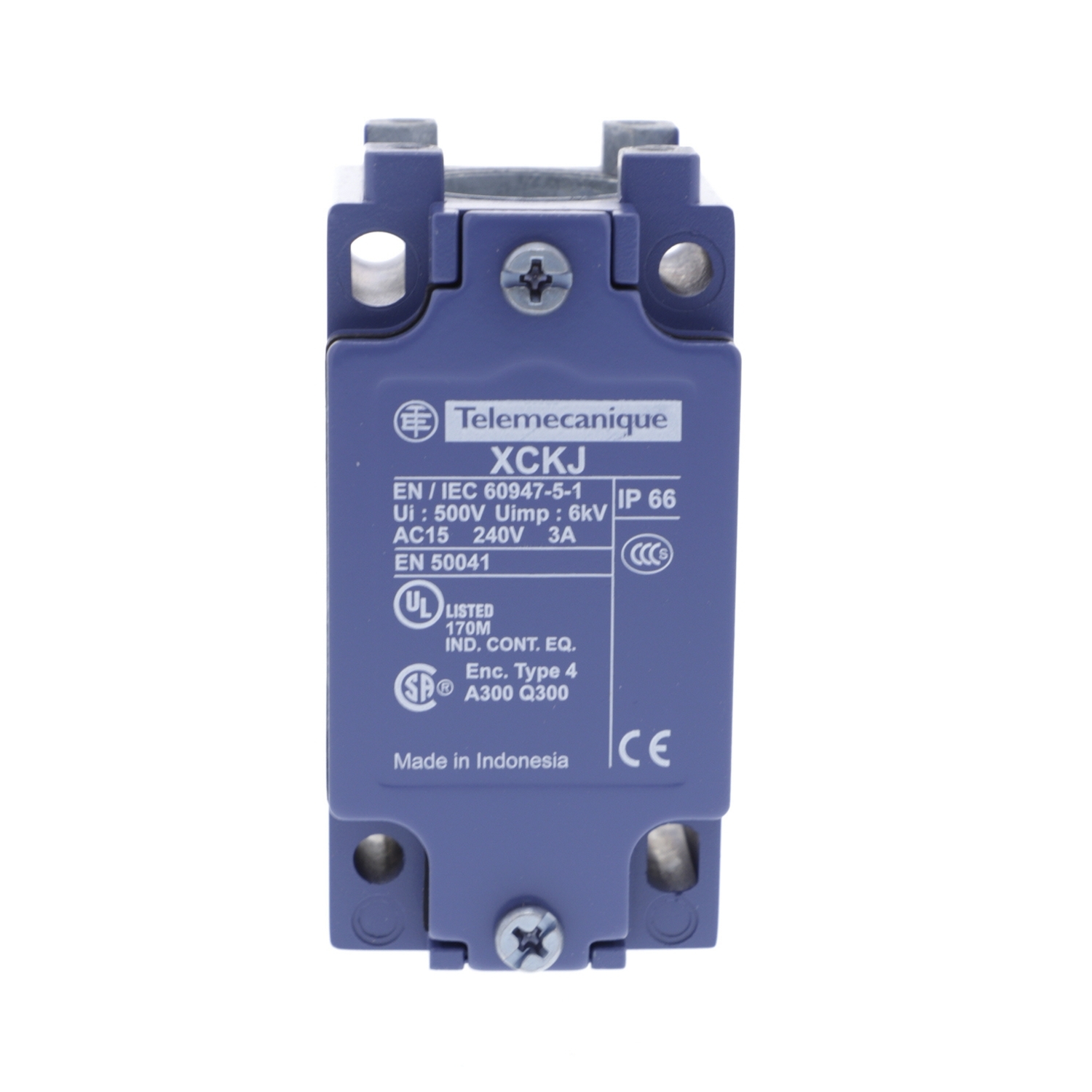

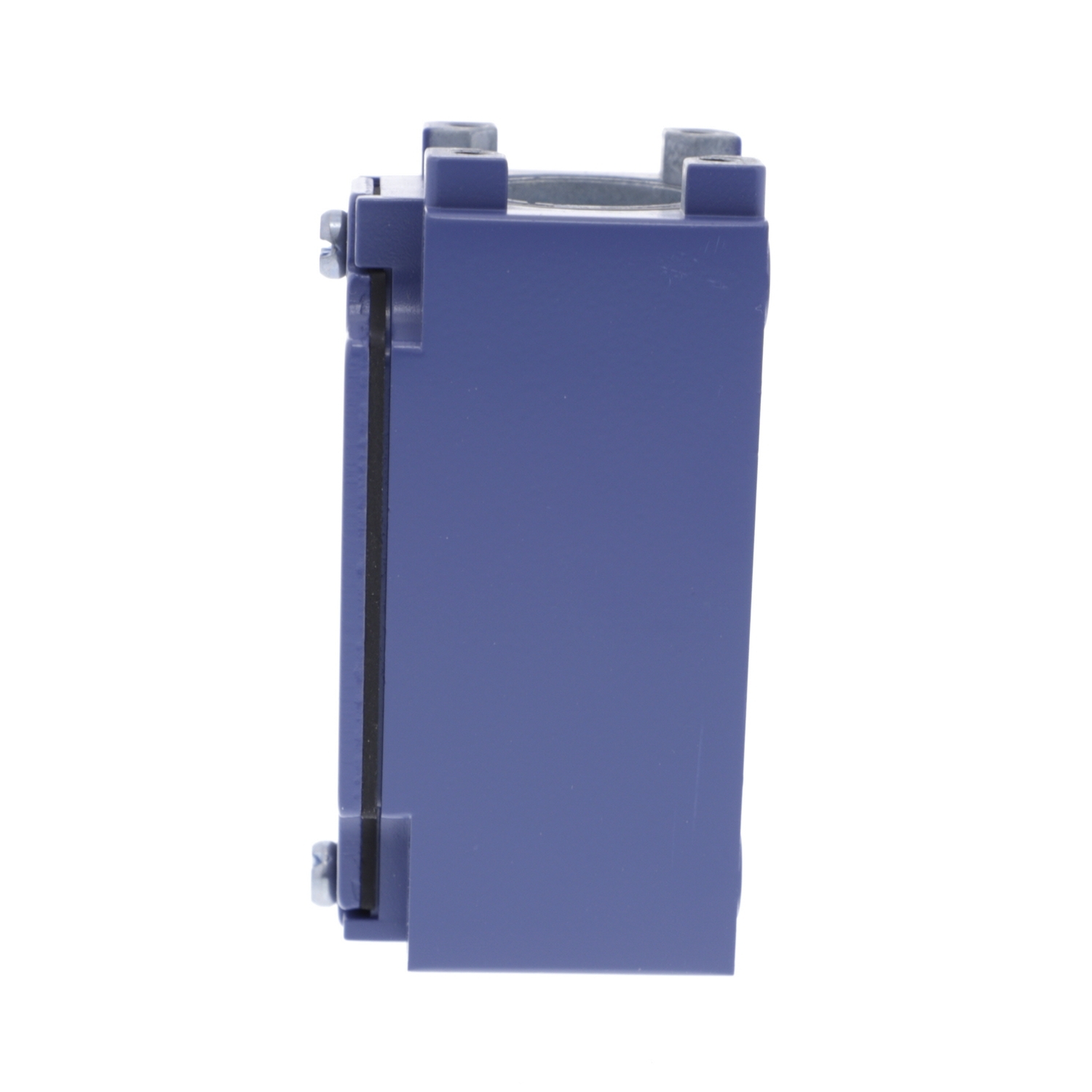

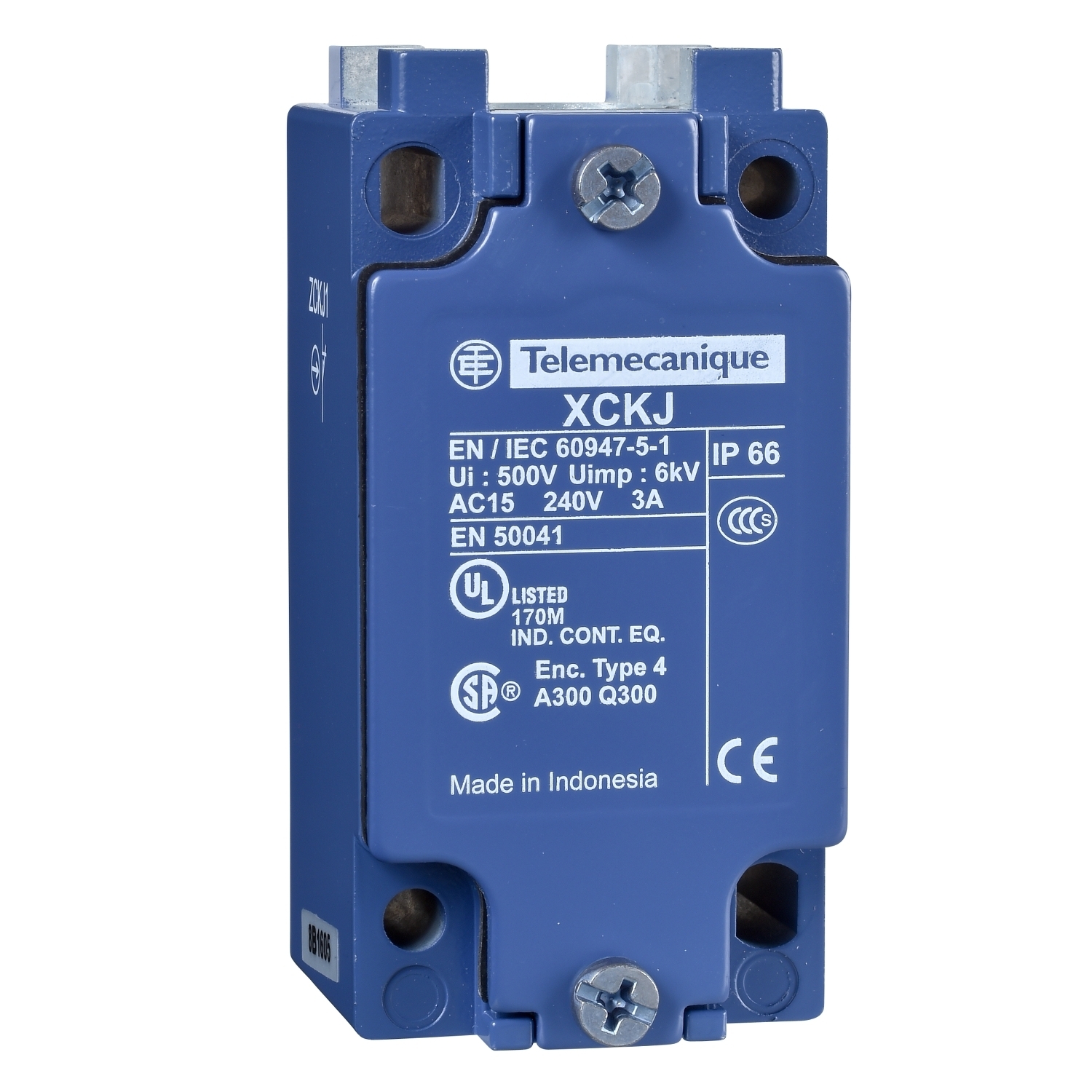

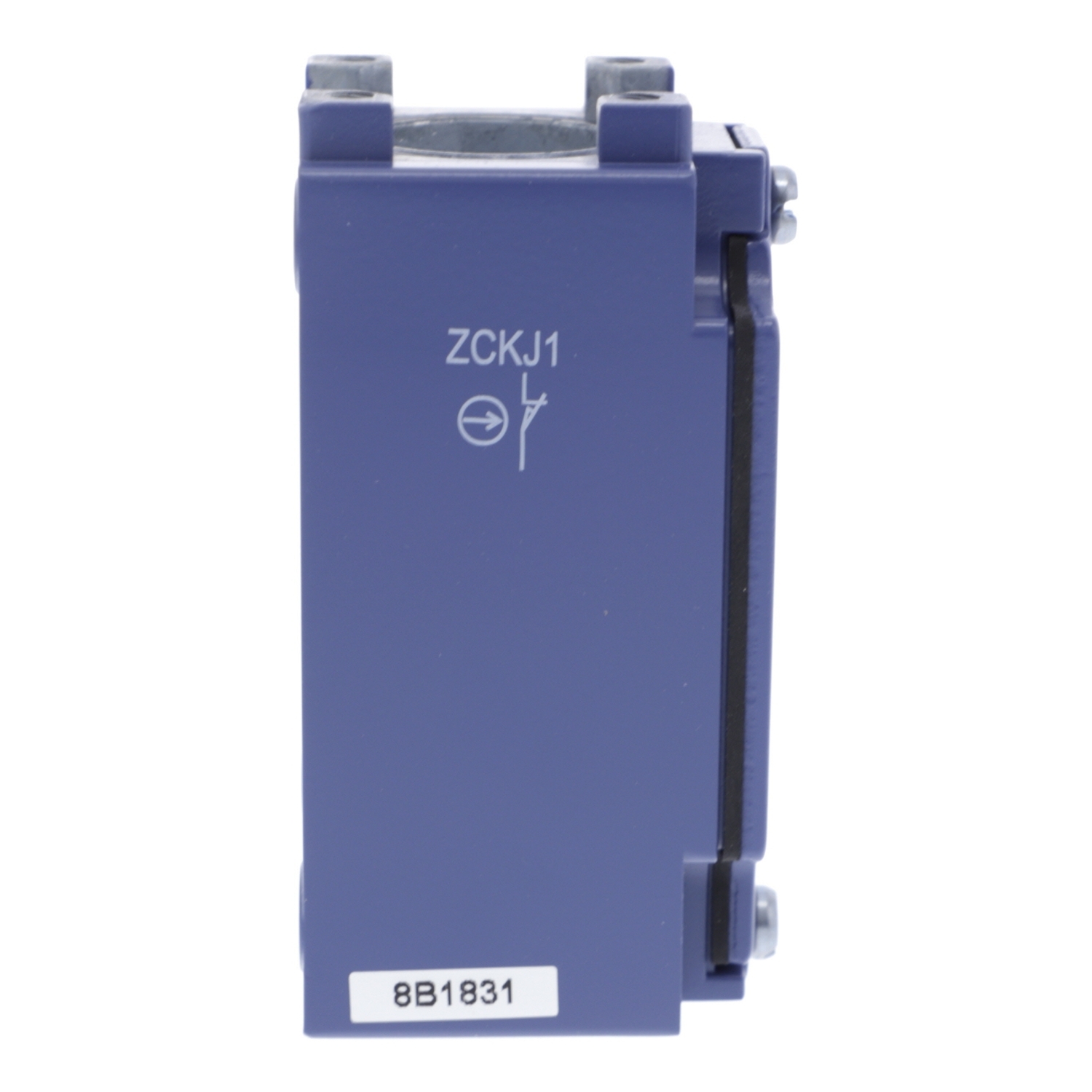

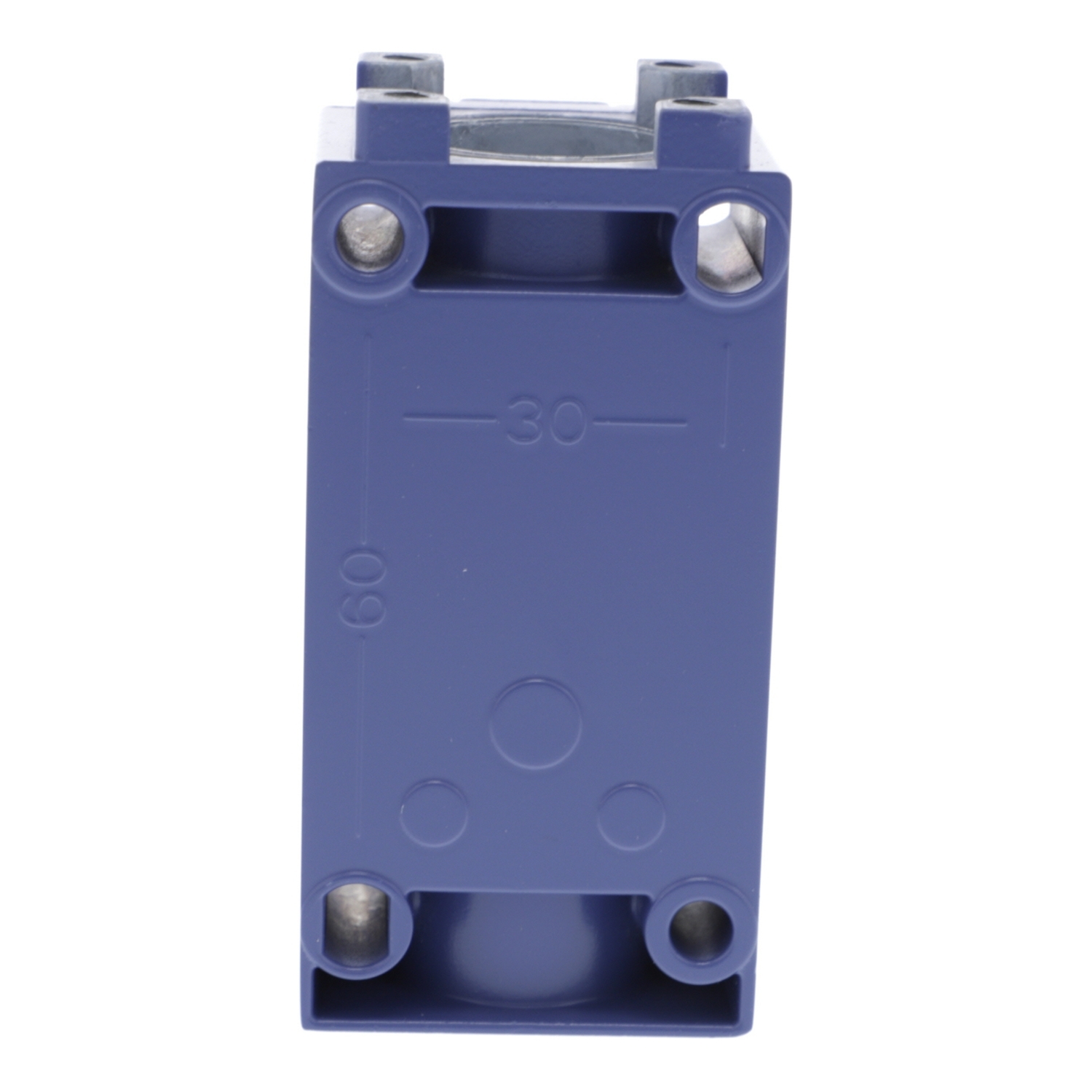

Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 1NC+1 NO, snap action, 1/2"NPT
MFR: Telemecanique Sensors
MFR #: ZCKJ1H7
UPC: 785901466444
Item #: 69492
Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 1NC+1 NO, snap action, 1/2"NPT
MFR #: ZCKJ1H7
UPC: 785901466444
Item #: 69492
Availability
| Location | Available Qty |
|---|---|
| Available | 1 |
$79.27
each
This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 1 x NO + 1 x NC snap action contacts and a 1/2" NPT cable entry. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.
Manuals and Documentation
- Catalog Number
- ZCKJ1H7
- Manufacturer
- Telemecanique Sensors
- Brand
- Telemecanique
- Sub Brand
- ZCKJ
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- Switzerland
- Made in USA
- No
- Action
- Snap action
- Amperage Rating
- 10
- Application
- XCKJ
- Connection
- Screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
- Contact Configuration
- 1 NC + 1 NO
- Enclosure
- IP66
- Number of Poles
- 2
- Operating Cycles
- 5000000 CYCLES, DC-13 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
- Special Features
- FIXED
- Standard
- IK07,IP66
- UPC
- 785901466444
- GTIN
- 03389110646153
- Item Type
- Limit switch body
- Size
- 36 MM,43 MM,84-84 MM
- Environmental Conditions
- HIGH TEMPERATURE
- Operating Temperature
- 10-120 A Degrees C HIGH TEMPERATURE
- Voltage Rating
- 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
