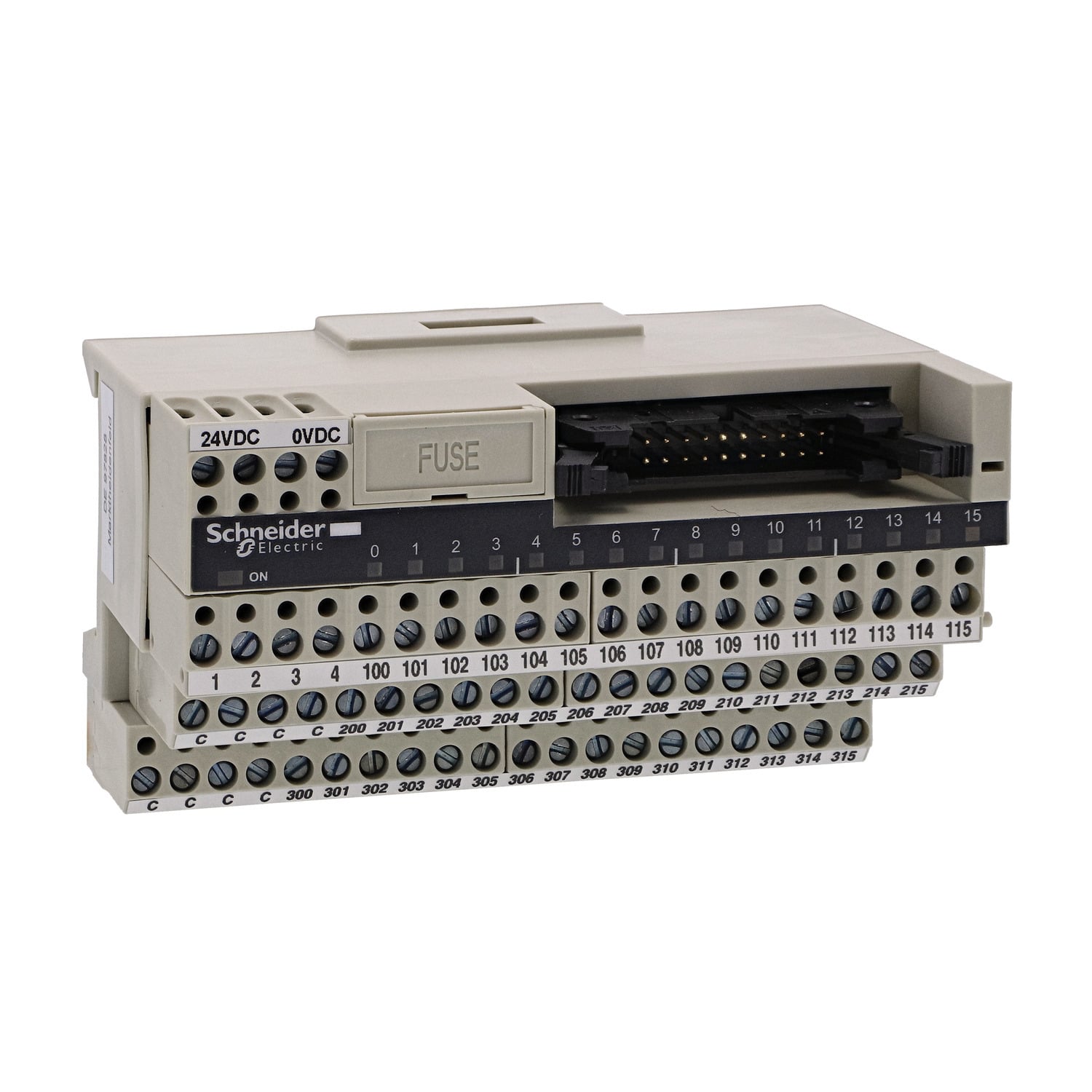

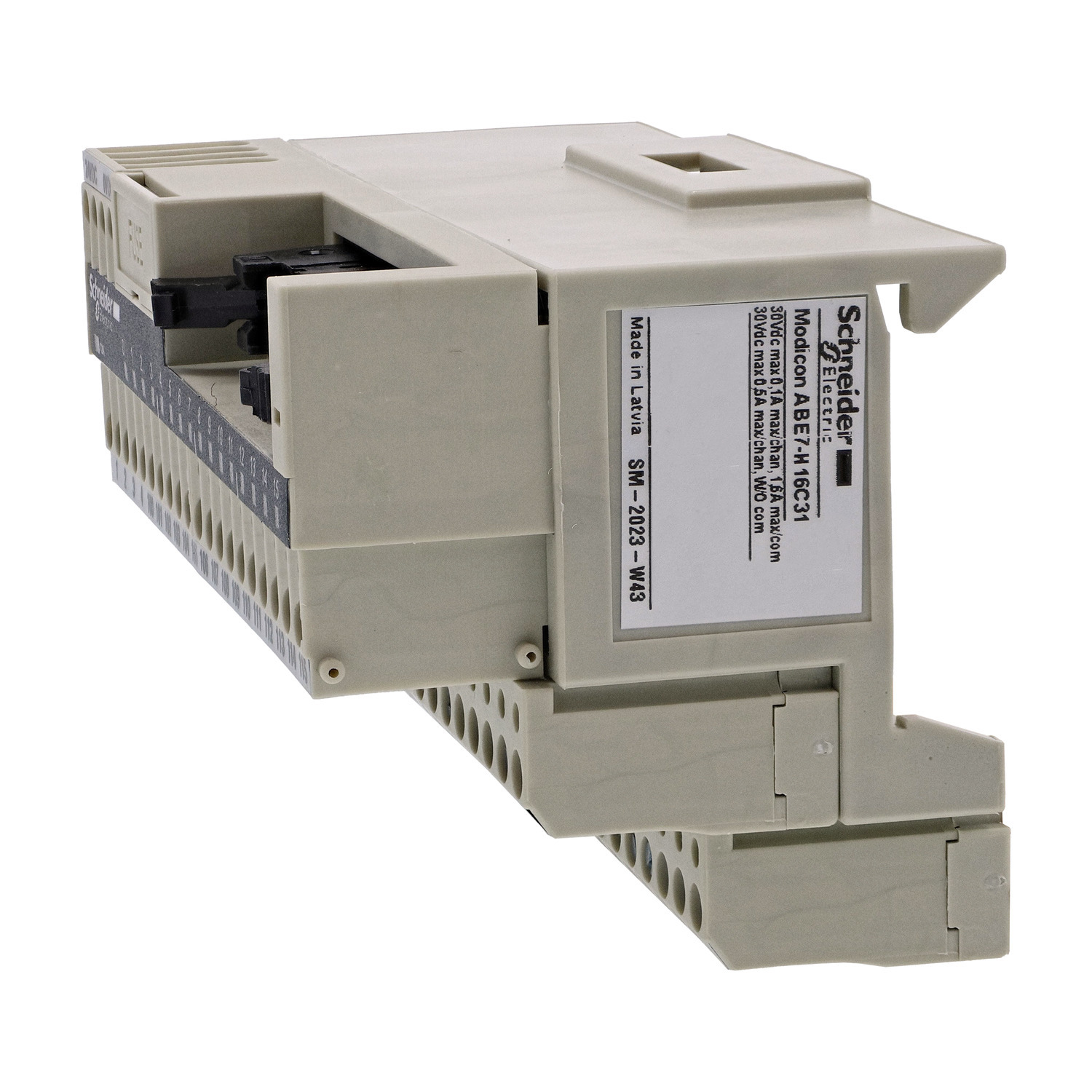

passive connection sub-base ABE7 - 16 inputs or outputs - Led
passive connection sub-base ABE7 - 16 inputs or outputs - Led
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This miniature passive connection sub-base provides 16 modularity input/output channels. It has 3 terminals per channel. It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.26kg. It is suitable for all types of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Manuals and Documentation
- Catalog Number
- ABE7H16C31
- Manufacturer
- Schneider Electric
- Brand
- Schneider Electric
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- Latvia
- Made in USA
- No
- Mounting
- Din Rail
- Special Features
- Screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² AWG 28...AWG 16) flexible with cable end;screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG 26...AWG 12) solid;screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG 26...AWG 14) flexible without cable end;screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² AWG 28...AWG 20) flexible with cable end;screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² AWG 24...AWG 14) solid
- GTIN
- 03389110251159
- Item Type
- Passive discrete I/O sub-base
- Voltage Rating
- 19...30 V IEC 61131-2
