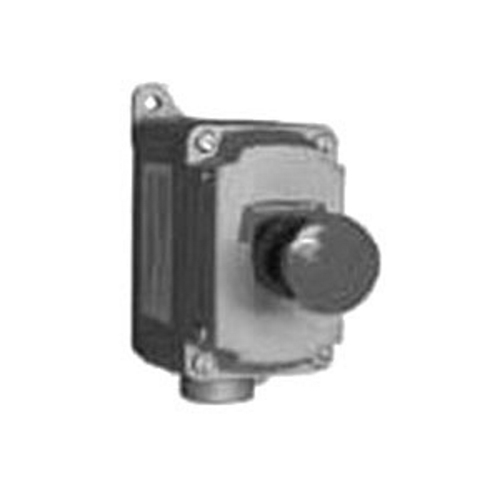

1-Circuits 1-Gang Pushbutton Switch; Maintained Action, 1 NO and 1 NC
MFR: Appleton Electric
MFR #: EFDCB175UM1
UPC: 781381701341
Item #: 150212
1-Circuits 1-Gang Pushbutton Switch; Maintained Action, 1 NO and 1 NC
MFR #: EFDCB175UM1
UPC: 781381701341
Item #: 150212
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$762.05
each
EFDCB Series 1-Gang 1 Circuit Push Button Switch, Action: Maintained, Contact Configuration: 1 NO/1 NC, Contact Rating: 10 AMP At 600 VAC, Actuator: Red Mushroom Head, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN
Manuals and Documentation
- Catalog Number
- EFDCB175UM1
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Country of Origin
- Mexico
- Made in USA
- No
- Action
- Maintained
- Application
- For Remote Control Of Motors
- Enclosure
- NEMA 3, 7CD, 9EFG
- Mounting
- Surface
- Special Features
- Eliminate need for adding sealing fittings and compound at each conduit entrance; Accurately tapped, tapered hubs for tight, rigid joints and ground continuity; Stainless steel push button shaft operates within stainless steel bushing assuring long, maintenance free operation; Push button switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements. Assures positive contact and long trouble-free operation; Enclosed stainless steel helper spring prevents accidental operation of push button in severe vibration installations; Push button models also available with dust cap for use in areas where excessive dust, moisture or corrosive conditions are encountered
- Standard
- UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups, C, DClass I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G And Class III
- UPC
- 781381701341
- GTIN
- 00781381701341
- Item Type
- EFDCB Series 1-Gang 1 Circuit Push Button Switch
